SKU:KTA-450
Alpine KTA-450
Alpine KTA-450
MADE TO ORDER
Couldn't load pickup availability
Description
Description

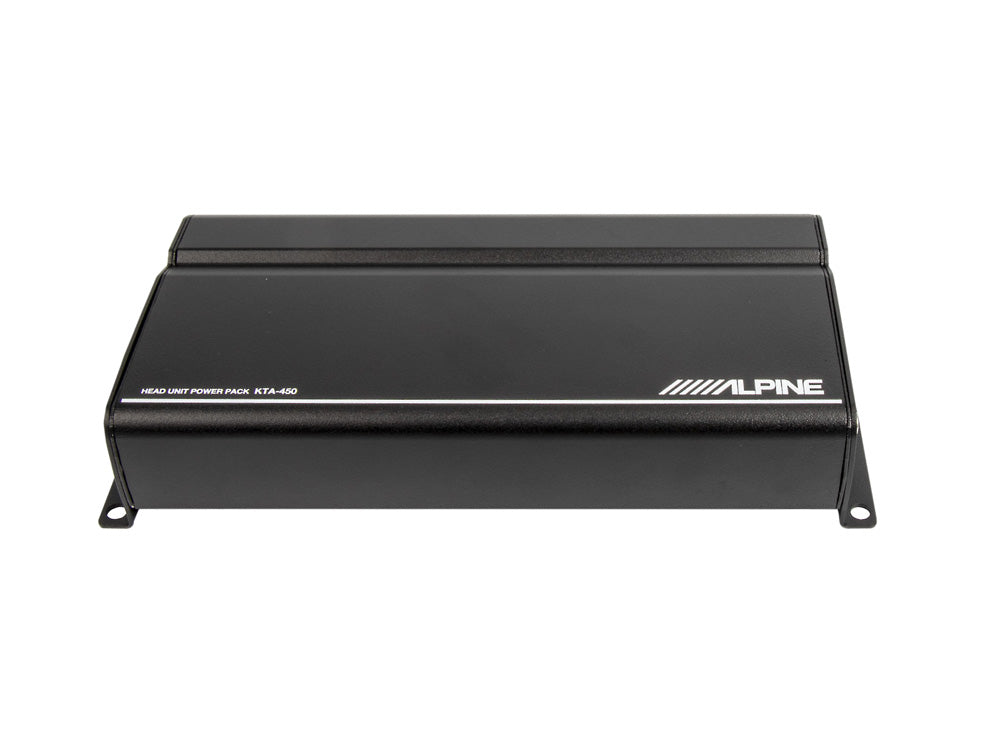

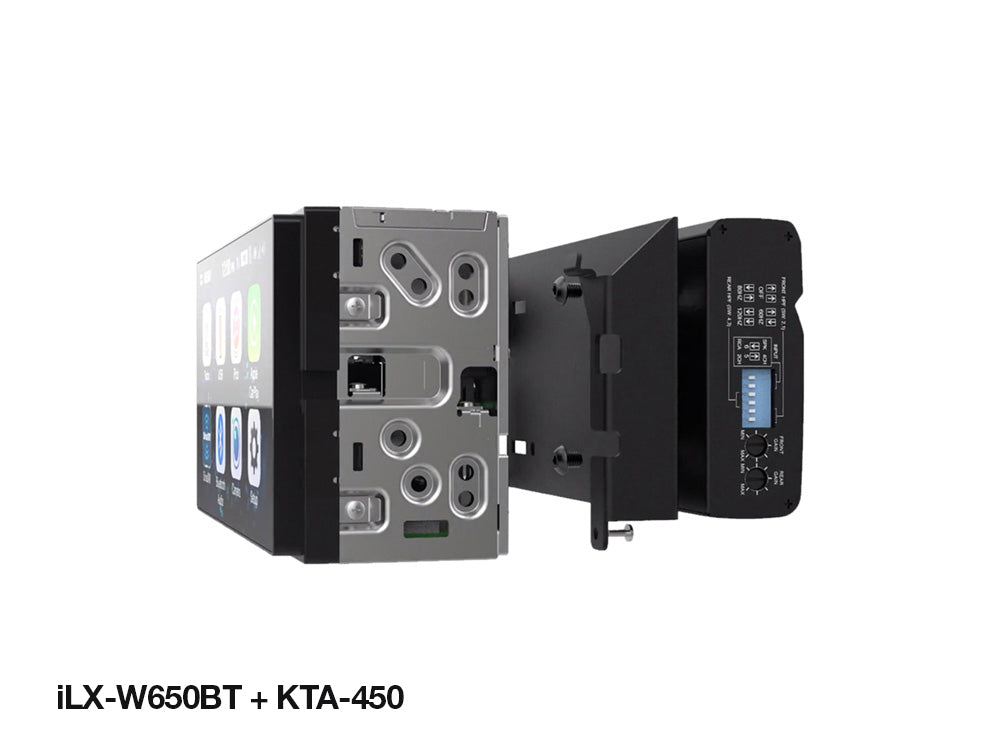

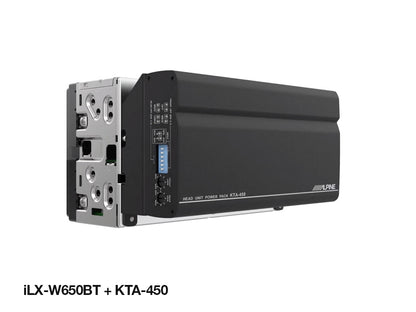

The KTA-450 is a very compact 4/2-channel amplifier that is primarily designed to be stacked with the iLX-W650BT, but it can also be used standalone in any universal configuration.
With Alpine's Dynamic Peak Power (DPP) technology, the KTA-450 can provide 100 Watts RMS power when needed.
Combined with the iLX-W650BT, the KTA-450 won the Innovations Award at the CES Show 2019. If you are planning to purchase an iLX-W650BT, this small amplifier will make a significant improvement to your system.
Specifications
Specifications
Generally
Amplifier type: Class-D (Digital)
Channel design: 4/2-channel (3-channel configuration not possible)

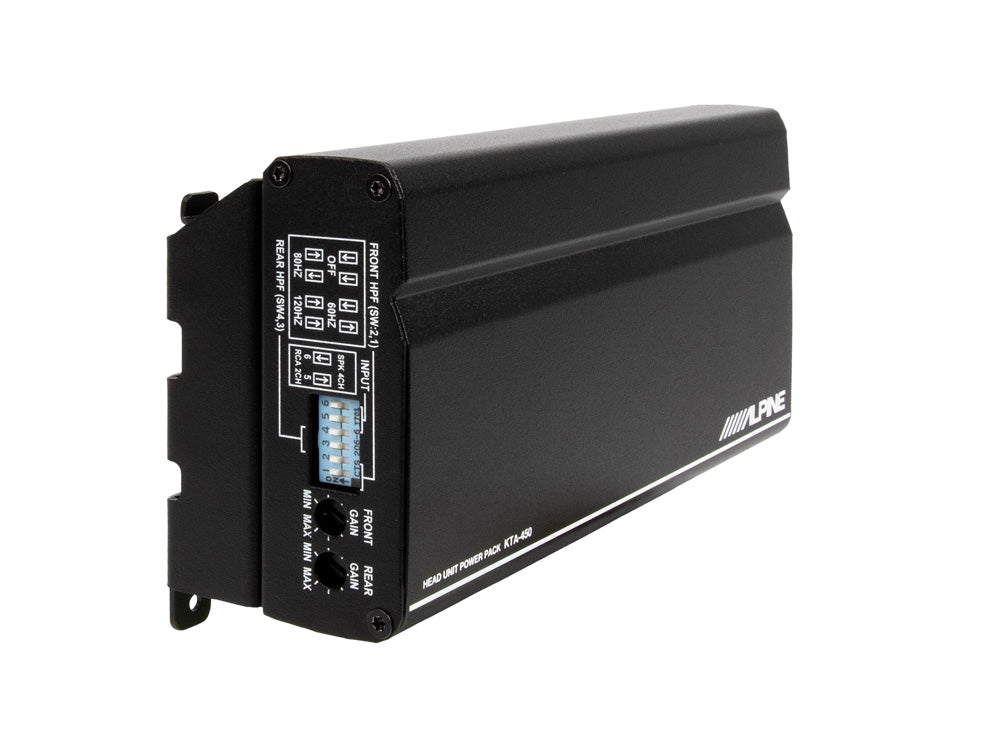

DIP switches
RCA and high-level inputs
Crossover: Adjustable high-pass filter (HPF)
Gain control: Front/Rear adjustable

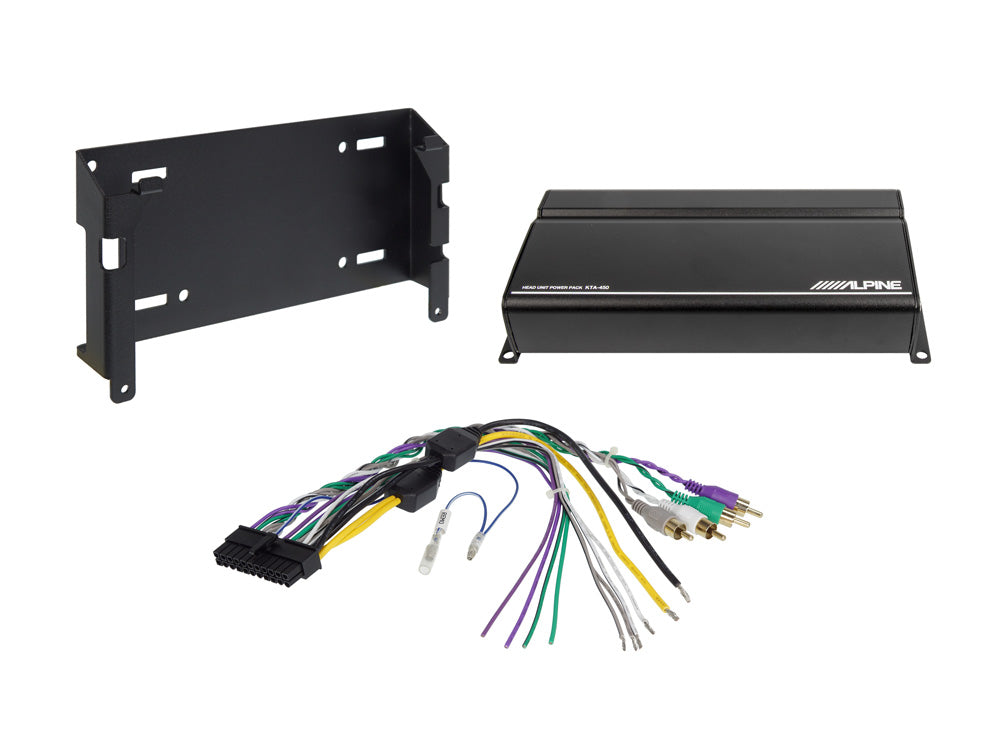

Supplied Power-Stack bracket and screws for rear mounting on iLX-W650BT
Included cable set
RMS power
Per channel in 2 Ohm, 14.4V (≤1%THD+N): 4 x 45W
Per channel in 4 Ohm, 14.4V (≤1%THD+N): 4 x 50W
Bridged, 4 Ohm, 14.4V: 2 x 100W
DPP (Dynamic Peak Power) effect
Per channel in 2 Ohm, 14.4V (≤1%THD+N): 4 x 100W
Per channel in 4 Ohm, 14.4V (≤1%THD+N): 4 x 100W
Sound setting
Crossover: Selectable HPF: 60, 80, 120Hz (-12dB/oct) on front and rear channels
Generally
Power requirement: 14.4 V.DC (9 - 16 V allowed)
Frequency Response (+0/-3dB: 1W into 4 Ohms): 15Hz – 50kHz
THD+N (@ 10W into 4 Ohms): <0.2%
S/N ratio: AES-17, Ref: 1W into 4 Ohms: >85dB
Weight: 0.6 kg
Measure
Width: 89mm
Height: 36mm (39mm with universal mount fitted)
Length: 181mm (198mm with universal mount fitted)
