Ampire Bluetooth Receiver BTR200

Bluetooth receiver for easy connection via AUX socket.

This universal A2DP Bluetooth receiver has been developed for vehicles that have a 3.5 mm jack socket and 12 volt power supply as AUX input AMPIRE A2DP Bluetooth receiver with automatic remote function splashproof, marine certified automatic activation automatic remote output (+12 V / 20 mA) QDL-licensed Bluetooth 4.0 CRS I9chip A2DP in the highest EDR specification - Bluetooth audio streaming also uncompressed files such as Wave, Flac, Lossless, MP3 etc. 3.5 mm jack socket with 1.0 V signal output SSID display name: BTR200 All settings, such as volume, music selection and play / pause, are made on your device The BTR200 can be installed out of sight as it has no controls or buttons to operate

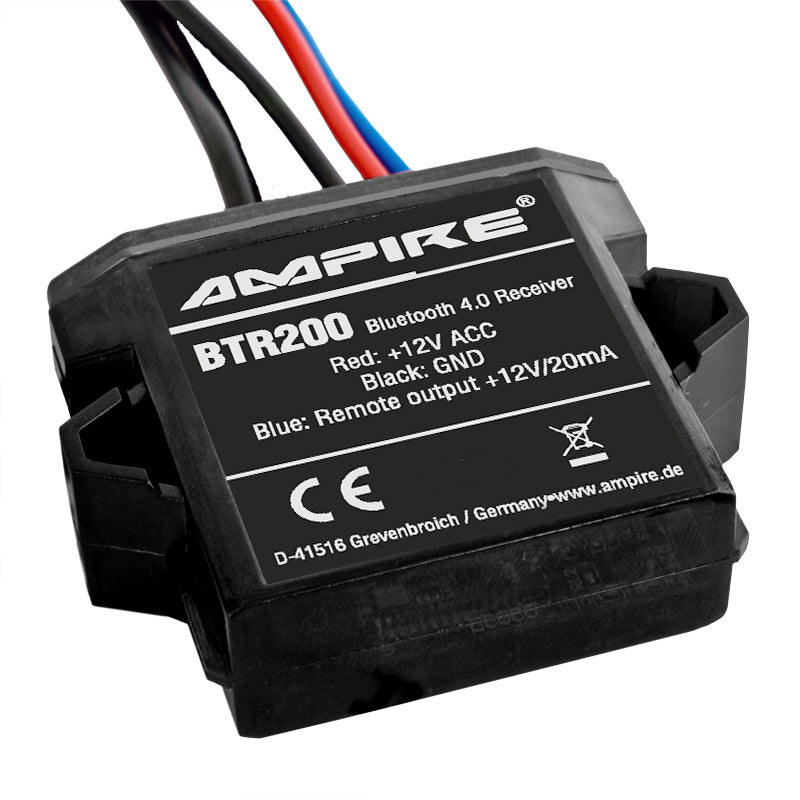

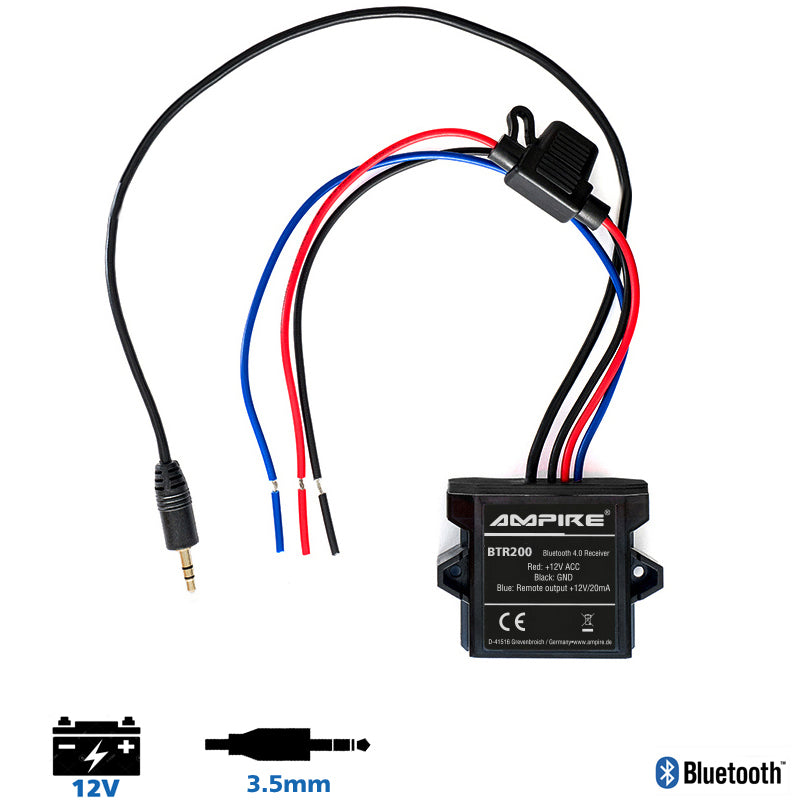

Technical specifications: Voltage: 12 V DC Current consumption: max. 40 mA Bluetooth 4.0 Frequency range: 20 Hz-20 kHz Output voltage: 1V RMS Connections: Blue: Remote output +12 V / 20 mA Red: + 12 V ignition fuse (ACC) 2 A Black: ground 3.5 mm jack plug Scope of delivery: AMPIRE BTR200 Bluetooth receiver

Note: Multiple devices can be connected to the BTR200, but only one device can stream music at a time. The BTR200 always remembers the last device learned and connects automatically when turned on. A connection to another device must be made manually. If the connected device is out of range for more than one minute, the connection is automatically terminated and the BTR200 enters pairing mode (LED flashes).
