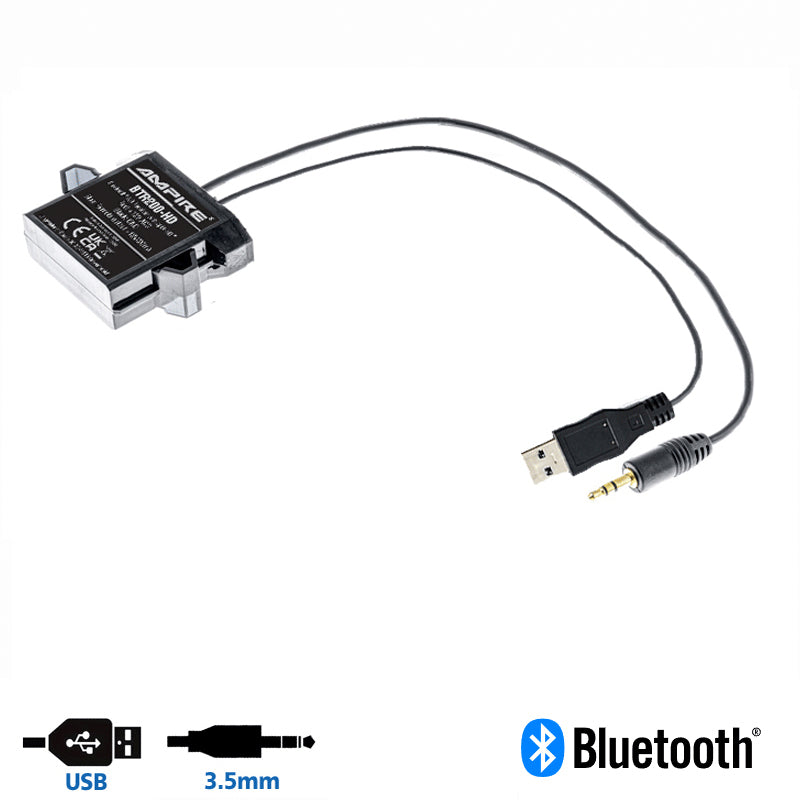

Ampire Bluetooth Receiver BTR300-HD

The AMPIRE BTR300X lets you wirelessly stream music, audiobooks and navigation from your Apple iPhone or Android smartphone via Bluetooth® with maximum sound quality. The receiver is perfect for car stereos and navigation devices with a 3.5mm AUX input and USB power supply.

High sound quality with aptX™
Thanks to the Qualcomm® aptX™ codec, you can enjoy CD-quality wireless audio playback. The codec compression optimizes bandwidth and supports formats such as MP3 and FLAC. Please note that Android devices must be compatible with aptX™, while Apple iPhones only support standard Bluetooth®.

Easy installation and automatic connection

Bluetooth® 5.0 for fast and stable connection.

Automatic reconnection at startup.

Water-resistant and marine-certified design.

Connections

Audio output: 3.5 mm AUX jack.

Power supply: USB (5 VDC).

Technical specifications

Voltage: 5V DC

Power consumption: <45mA

Bluetooth® version: 5.0

aptX™ codec for high sound quality

Frequency range: 20Hz-20kHz

Bitrate: Up to 384 kbps (48 kHz sampling)

Audio output: 1V RMS

Cable length: 300mm

Dimensions: 20x65x50 mm (Height x Width x Length)

Range: Up to 10 meters

Compatibility

Android: Bluetooth® and Bluetooth® aptX™.

Apple iOS: Standard Bluetooth®.

Approvals

Bluetooth® certification: Declaration ID D068331, Qualified Design ID 173056

Included accessories

BTR300X Bluetooth® Receiver

USB power cable

User manual

Device pairing

Activate Bluetooth® on your device.

Turn on the ignition.

The receiver's LED flashes blue (pairing mode).

Select "BTR300X" in the Bluetooth® menu.

When the connection is complete, the LED will be solid and a beep will be heard.
