Ampire KCX802

FEATURES

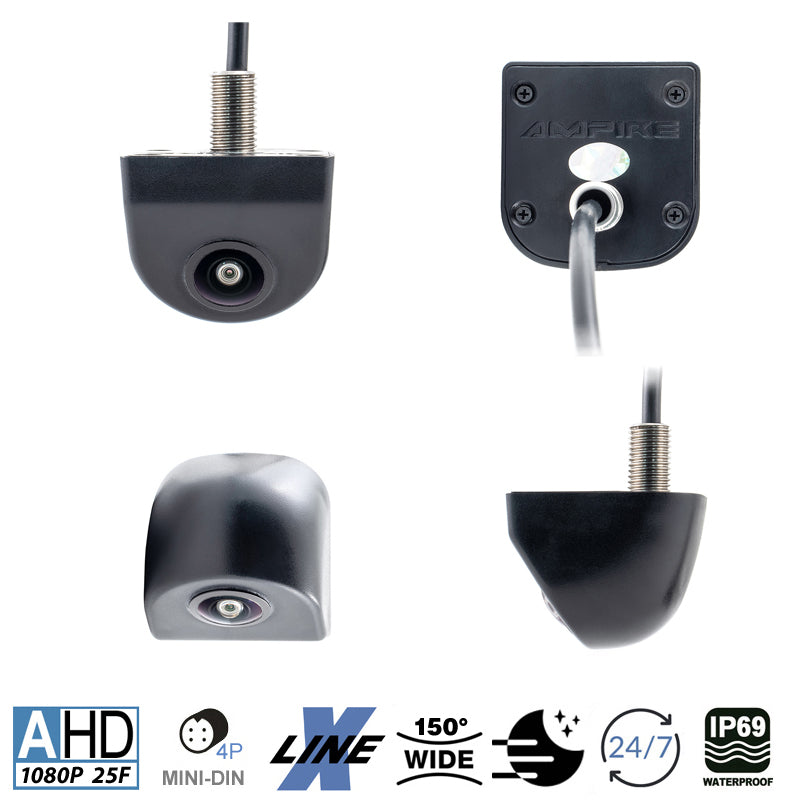

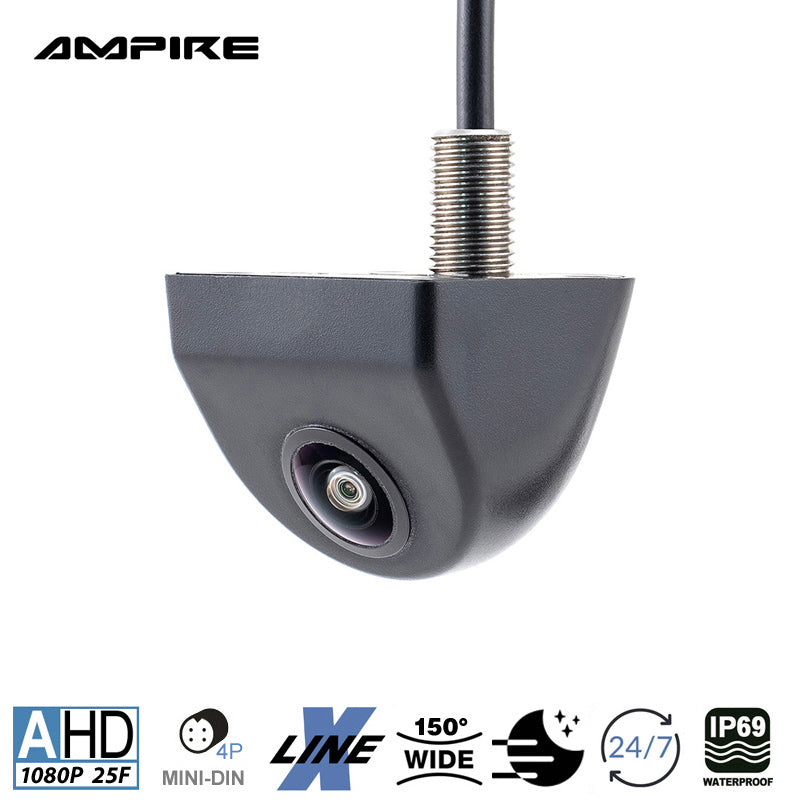

AHD wide-angle camera in plastic housing
Can be used for 24/7 continuous operation
IP69K waterproof with stainless steel bracket.

SETTINGS OPTIONS

Guide lines: disabled from the factory (2 different ones can be activated)
Image display mirrored (adjustable)
Image display rotated 180° (adjustable)

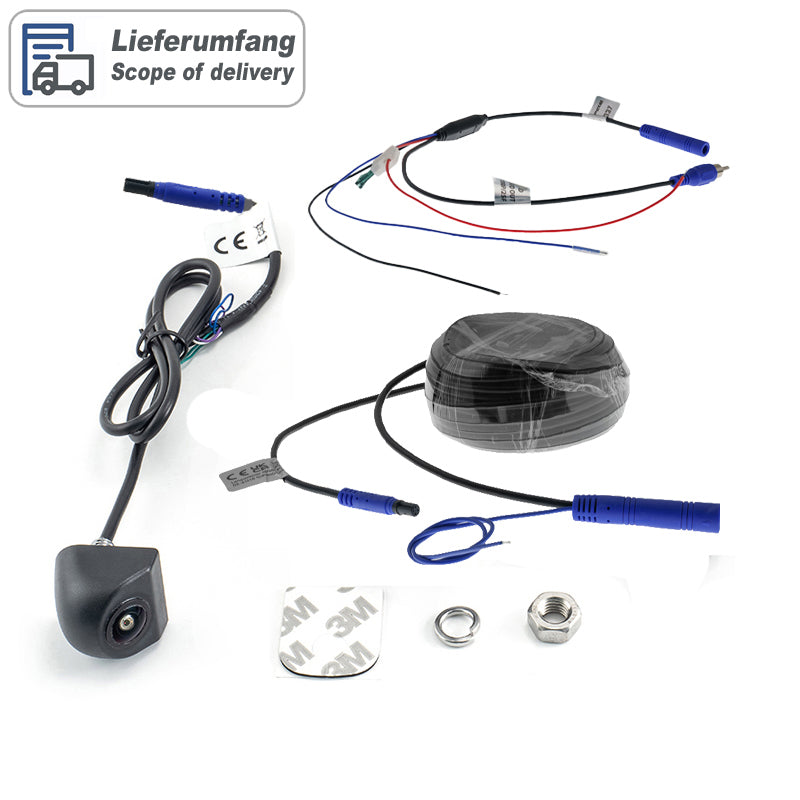

DELIVERY CONTENTS

Camera

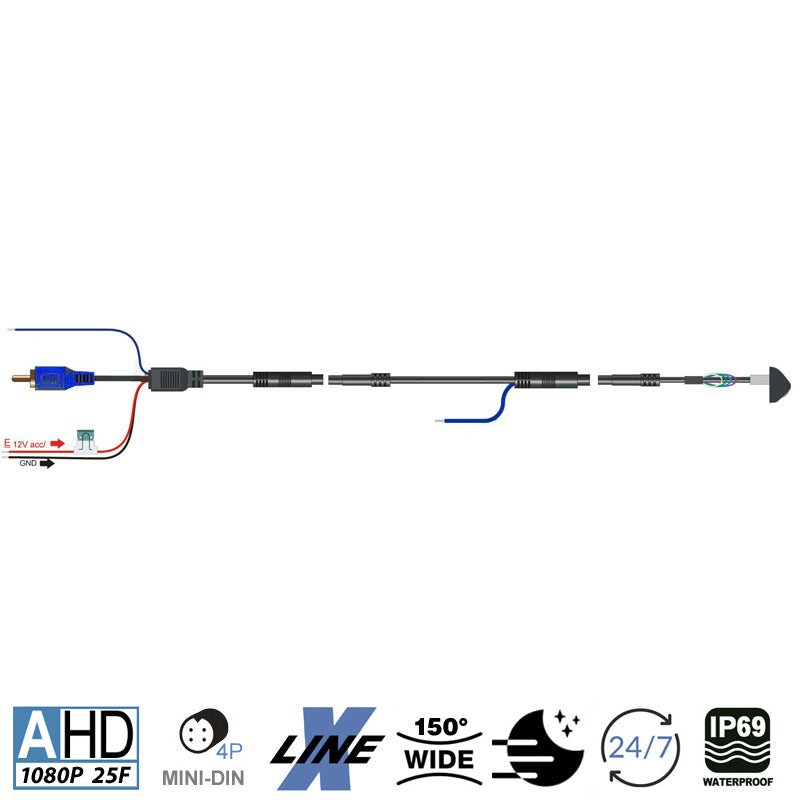

8m extension cable
Power supply unit
User manual

TECHNICAL DATA

Image sensor AHD 1/4" 2729
Video signal 1080P at 25 frames/second
Resolution 1920x1080 pixels
Diagonal field of view 170°
Horizontal field of view 150°
Vertical field of view 90°
Exposure 1/50-60~1/15000 seconds
Signal-to-noise ratio =>60.5 dB
Light sensitivity < 0.01 lux
Automatic white balance
Automatic video level adjustment

GENERAL DATA

Operating voltage 6 to 26 Volt DC
Power consumption 60-90mA
DIN protection class IP69K
Matte black housing with stainless steel mounting bracket

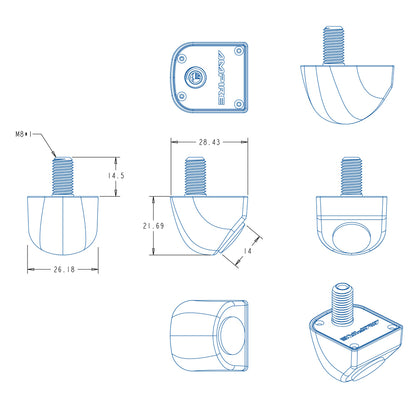

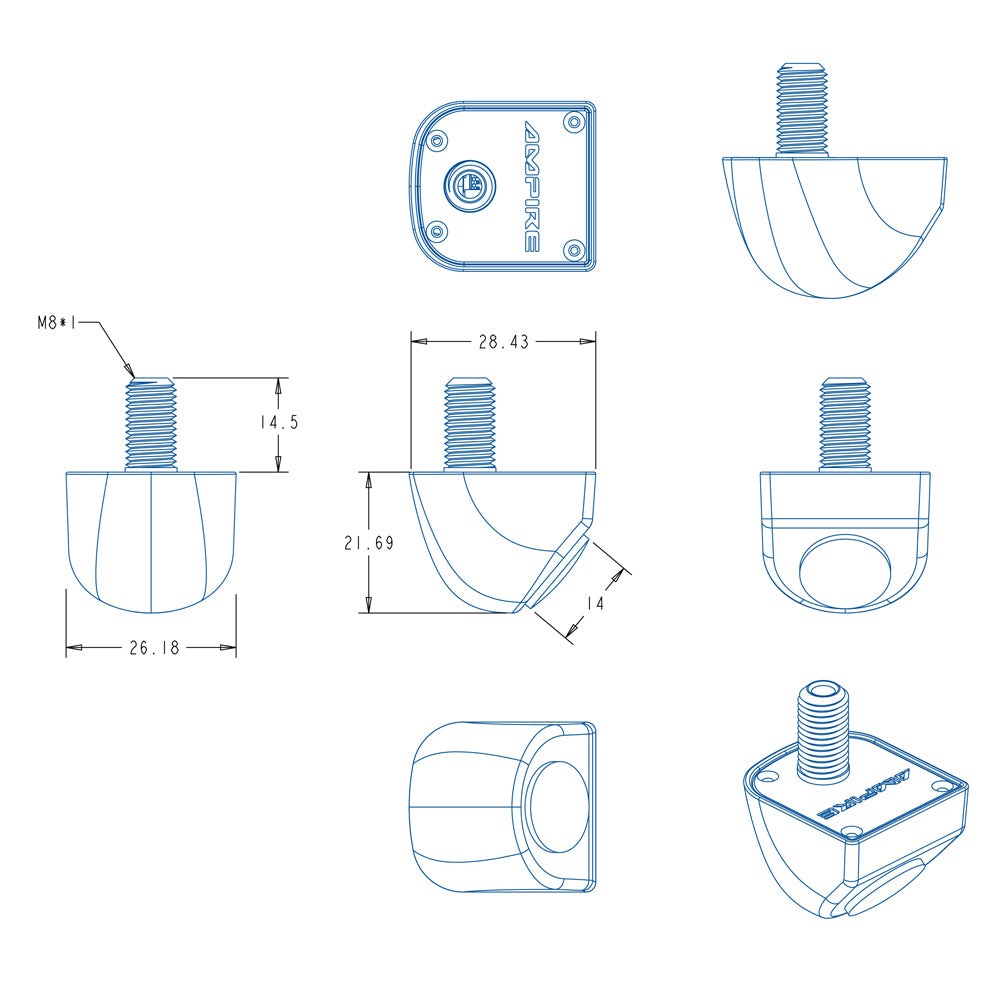

Camera mounting dimensions 25.8x28.2mm and 20.8mm high
Drill hole 8mm
Operating temperature -40°C to +75°C
Storage temperature -60°C to 105°C
E-certified

APPROVALS

CE Directive 2004/108/EC, EN55022: 2010, EN 55024: 2010 Report no. STR12058091E
FCC Part 15B Report no. STR12058092E-3
