Ampire VSC-E-AU15

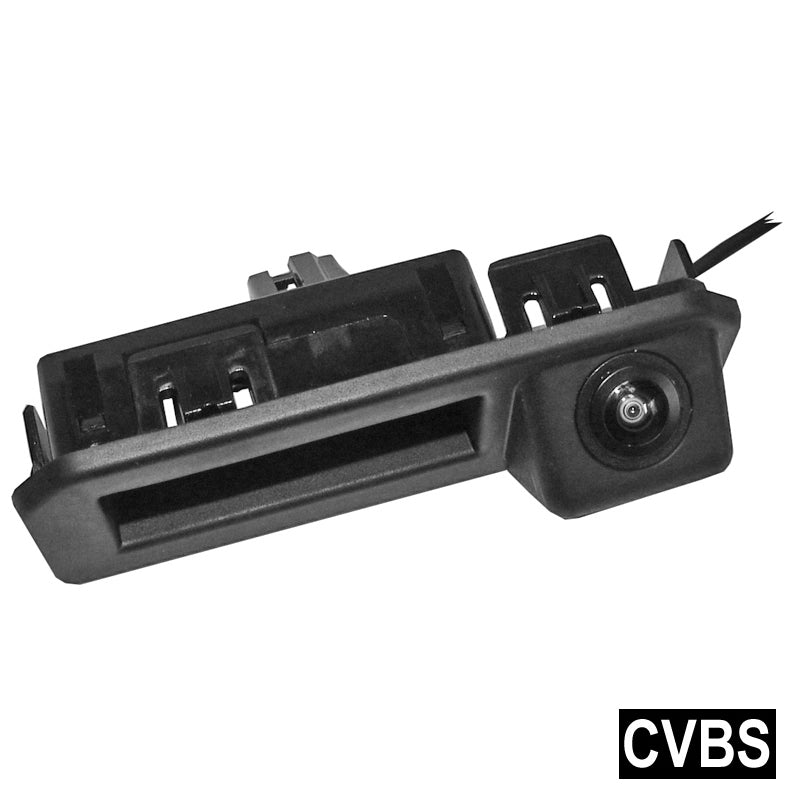

Vehicle-specific rear handle with integrated reversing camera and switchable distance lines. Easy installation by replacing the factory rear handle. System wiring harness of sufficient length and with vehicle connectors. Thanks to the small diameter connector, the cable is easier to install. Wiring harness for signal transmission, power supply and reversing signal.

Product features:
- Sensor type 1/4 CMOS
- NTSC imaging system
- mirrored Image (fixed)
- Distance lines can be turned off.
- angle horizontal 110°, vertical 90°, diagonal 140°
- IP68

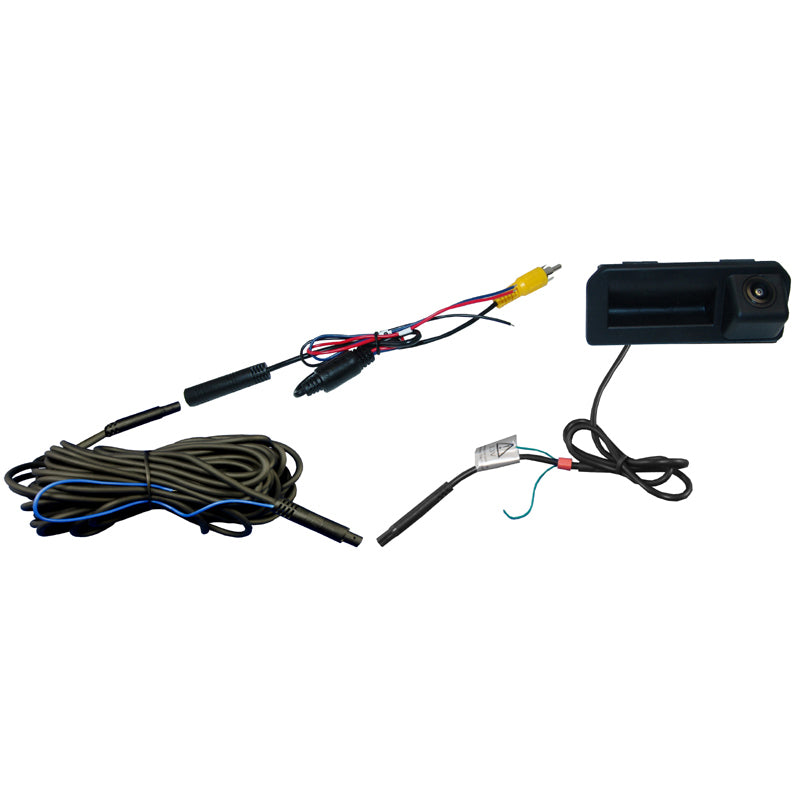

- camera cable 1.8 m with 4-pin system cable socket (diameter 5.9 mm).
- System extension cable 4-pole, 8m with cable for signal transmission.
- System connection cable 4-pin with RCA connector, power supply, fuse.
- weight incl. Cable approx. 238g
- Supply voltage 10-15V
- power consumption 1.5W 200mAh
- Fuse 2A

Fits the following models:

AUDI A1 (GB) from 09/2018
AUDI A3 5-door hatchback (8Y) from 03/2020
AUDI A3 4-door sedan (8Y) from 04/2020
AUDI A5 Coupe (F5) from 06/2016
AUDI A5 Convertible (F5) from 11/2016
AUDI A5 Sportback (F5) from 10/2016
AUDI S5 Coupe (F5) from 06/2016
AUDI S5 Convertible (F5) from 11/2016
AUDI S5 Sportback (F5) from 10/2016
AUDI RS5 Coupe (F5) from 06/2017
AUDI RS5 Sportback (F5) from 02/2019
AUDI A6 Avant (4K) from 06/2018
AUDI A6 Limousine (4K) from 06/2018
AUDI A7 Sportback (4K) from 02/2018
AUDI Q2 SUV (GA) from 09/2016
AUDI Q3 SUV (F3) from 11/2018
AUDI Q3 SUV Sportback (F3) from 08/2019
AUDI Q4 E-Tron SUV (FZ) from 03/2021
AUDI Q4 SUV Sportback (FZ) from 03/2021
AUDI Q5 SUV (FY) from 01/2017
AUDI Q5 SUV Sportback (FYT) from 03/2021
AUDI Q8 SUV Coupé (4M) from 07/2018
AUDI Ettron SUV (GE) from 03/2019

Porsche Cayenne E3 SUV (PO536) from 2018

Skoda Enyaq (5A) from 11/2020
Skoda Fabia 3 (NJ) from 06/2016 to 08/2021
Skoda Fabia 4 (PJ) from 09/2021
Skoda Kamiq (NW4) from 06/2019
Skoda Karoq (NU7) from 07/2017
Skoda Kodiaq (NS7) from 03/2017
Skoda Octavia 4 (NX) from 03/2020
Skoda Octavia 4 Estate (NX) from 03/2020
Skoda Rapid (NH) from 06/2016 to 02/2019
Skoda Rapid Spaceback (NH) from 06/2016 to 02/2019
Skoda Scala (NW1) from 01/2019
Skoda Superb 3 (3V) from 04/2018
Skoda Superb 3 Estate (3V) from 04/2018

SEAT/CUPRA Arona (KJ7) from 11/2017
SEAT/CUPRA Ateca (KH7) from 04/2016
SEAT/CUPRA Formentor (KM7) from 11/2020

VW ID.4 (E21) from 12/2020
VW Jetta7 (BU) from 2022
VW T-Cross (C11) from 04/2019
VW Touareg 3 (CR) from 07/2018
