Audio Control ACM-1.300

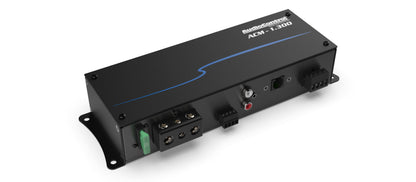

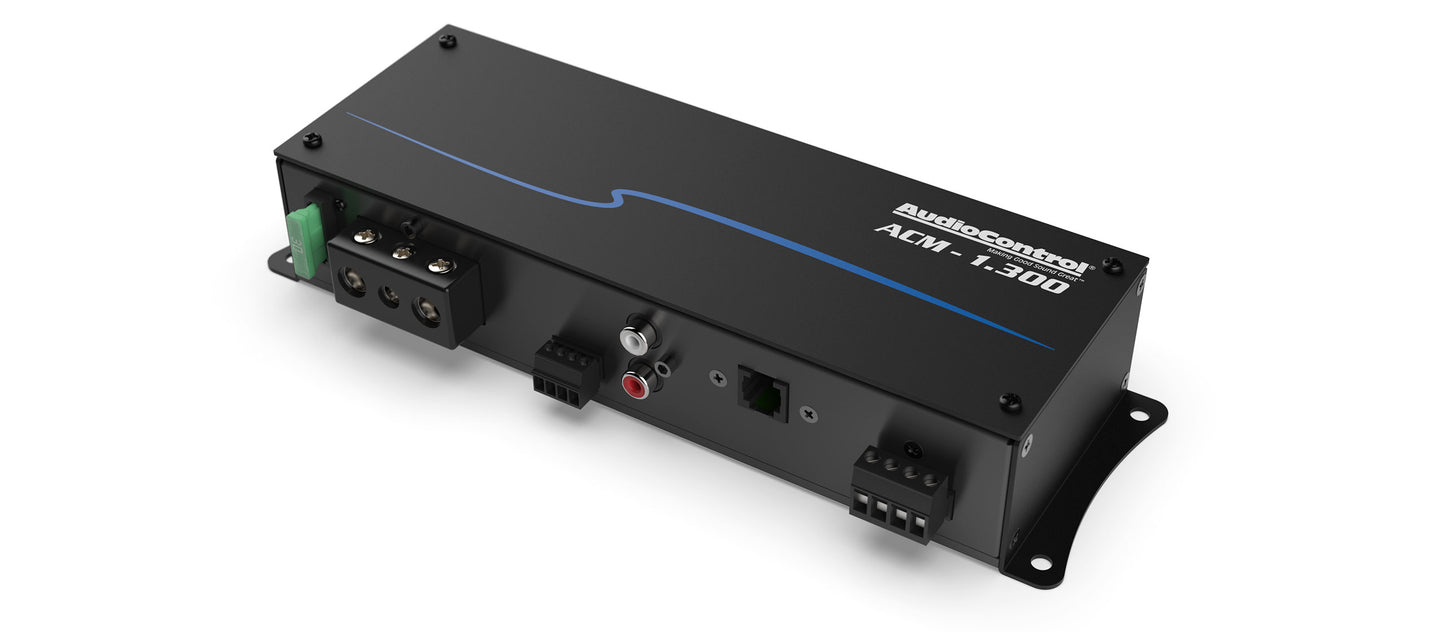

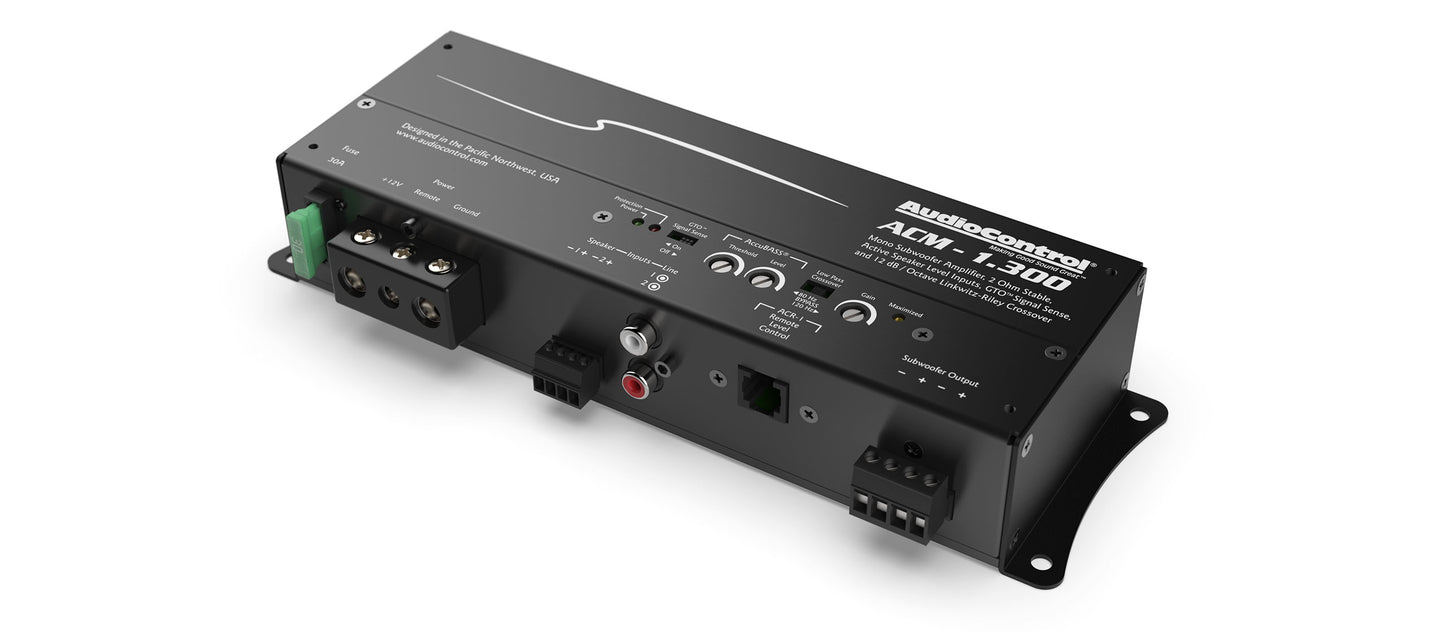

AudioControl ACM-1.300.
The ACM series amplifiers from AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power output and the ability to help integrate with factory stereo systems are features that ensure that "Making Good Sound Great" can happen in any installation.
Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series processors or when using multiple ACM Series amplifiers in tight spaces.
Once again, AudioControl comes to the rescue by combining features and benefits needed to ensure audio euphoria in an in-car environment.
300 watts @ 2 ohms 175 watts @ 4 ohms.
AccuBASS® processing.
GTOTM Signal Sense.
Active speaker-level inputs for OEM integration.
RCA line inputs.
Linkwitz-Riley Crossover Filter.

SPECIFICATIONS:
INPUTS:
Preamp Inputs: 2 RCA
Preamp Input Voltage Range: 500 mV – 6 Vrms
High-level inputs: 2
High Level Input Voltage Range: 3 V – 40 Vrms
OUTPUTS:
Rated continuous (RMS) power at 14.4 V:
4Ω – 175W RMS
2Ω – 300W RMS
PERFORMANCE:
Frequency range: 10 Hz - 22 kHz
Signal to noise: 102 dBA, Ref 175 W @ 4 Ohm
THD+N: < 0.01%
Power/Ground Wire Size: 10 to 4 AWG Wire
Fuse: 1 x 30 A
Crossover filter: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, bypass.
PFM subsonic filter: 24 Hz
WEIGHTS & DIMENSIONS
Dimensions: 239mm W x 77mm D x 45mm H
Weight: 0.95 kg
