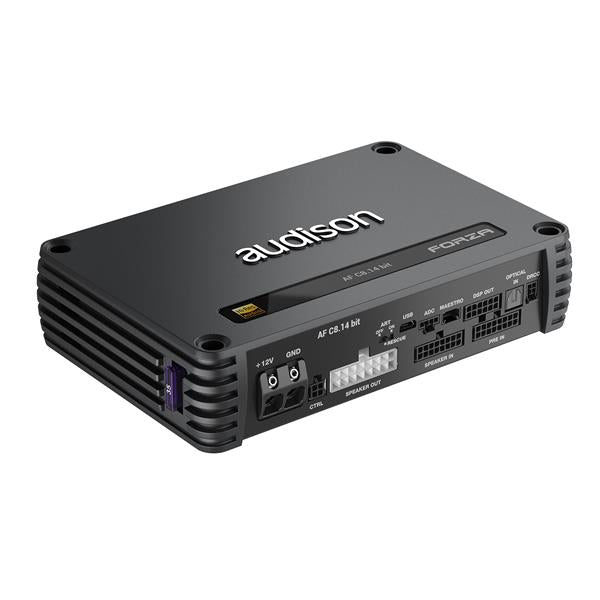

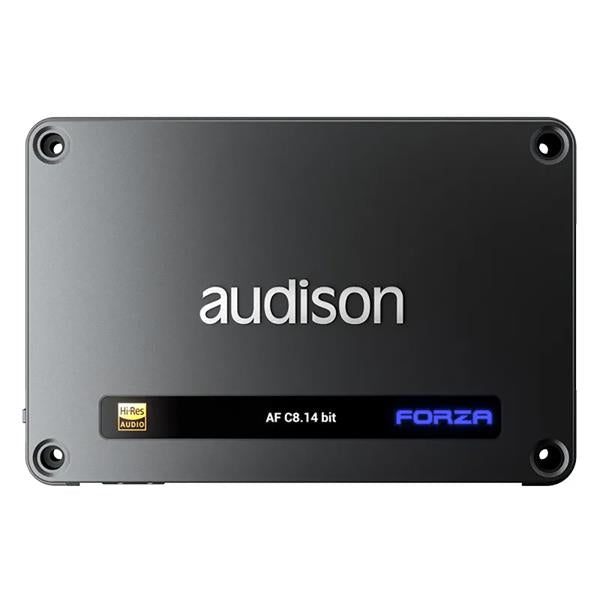

Audison AF C8.14 bit

DSP-förstärkare | 800 W | 14 CH DSP + 8 x 100 W @ 2 ohm | D-klass, Fullt bryggbar.

AF C8.14-bit har åtta högupplösta kanaler på 65 W x 8 @4Ω*, 100 W x 8 @2Ω* och det audiofila ljudet från den senaste generationens Audison D-Klass-teknik.
Högre frekvensomfång, brantare filtrering och komponenter med högre tolerans ger ett ljud som överträffar förväntningarna i klass D – i ett otroligt kompakt paket!

Detta kombineras med inbyggd DSP som arbetar vid 24 bitar/96 kHz, vilket utökar ljudbandet upp till 40 kHz och ger den eftertraktade högupplösta certifieringen.
Bryggning av kanalpar resulterar i 200 W x 4 @4Ω*, vilket garanterar flexibel och kraftfull prestanda. Stöd för Audison B-CON:s Absolute Volume-funktion garanterar maximalt bitdjup, även med trådlösa anslutningar!

*Utgående kontinuerlig effekt (RMS) @14.4 VDC, 1% THD, alla kanaler drivna.

Amplifier Tech Data:
Channels: 8
Class: D-Class
Power supply voltage / fuse: 11 ÷ 15 VDC / 1 x 35A
Operating power supply voltage: 6.5 ÷ 17.5 VDC
Idling current: 1.3 A
Standby Current Draw: 1 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 34 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers: 1.5 VDC
Efficiency Rated Power: 81%

Amplifier Stage.
Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.05%
Bandwidth @ -1.5 dB: 10 Hz ÷ 42 kHz
Damping factor @ 1 kHz, 4Ω, 2 VRMS: 85
S/N ratio (A weighted @ 1 V Input) Master Input: 98.5 dBA
S/N ratio (A weighted @ 1 V Input) Optical Input: 105
Total Power RMS: 800 W
Minimum load impedance. 2Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD: 8 Ch @ 4Ω: 65 W x 8

8 Ch @ 2Ω: 100 W x 8

4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 200 W x 4
Adjustable Crossover: Yes

CEA Specifications:
Output power @ 4Ω, 1% THD+N, 14.4 V: 55 W x 8
SN ratio (ref. 1W output): 80 dB
Inputs / Outputs:
Pre-In Inputs 0.6 ÷ 6 VRMS (15 kΩ Imp.)
Digital Input: Yes
Pre Outputs: 6
Hi Level Inputs: 8
Low Level Inputs: 8
Speaker-In Inputs: 2.2 ÷ 22 VRMS (5 Ω Imp.)
Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card.
Input Optical IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card.

Digital Signal Processor:
Audio DSP Converter: Analog Devices ADAU1467 automotive qualified audio processor processing @ 96 kHz.

Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance.

Filter type: Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope: Linkwitz-Riley @ 12/24/36/48 dB/Oct.
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
QLP @ 6 dB/Oct.
Crossover frequency: 20 Hz ÷ 20 kHz
Phase control: 0° / 180°, All-Pass filters
Analog Input Equalizer (20 ÷ 20k Hz): 12 Biquad + Delay
Output Equalizer Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
Time Alignment Delay: 0 ÷ 15 ms
Input Output Real Time Audio Monitor: RTA

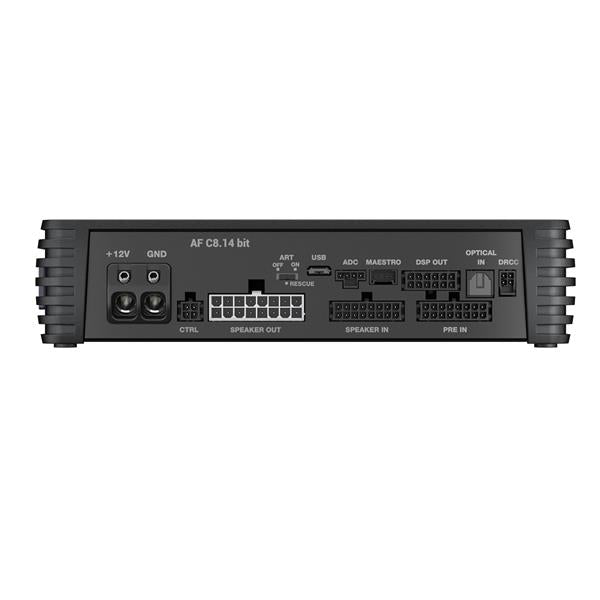

Control Connections:
DRC Port: Input for DRC AC remote control (Optional)
ADC Port: Manage other Audison devices that support this standard.
1 Wire: Customizable functions (+ 12 V activated)
2 Wire: Customizable functions (+ 12 V activated)

General Requirements:
PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
Software/PC requirements: Windows 10, Windows 11
Video Resolution with screen resize: (min. res. 1024 x 768)
Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
