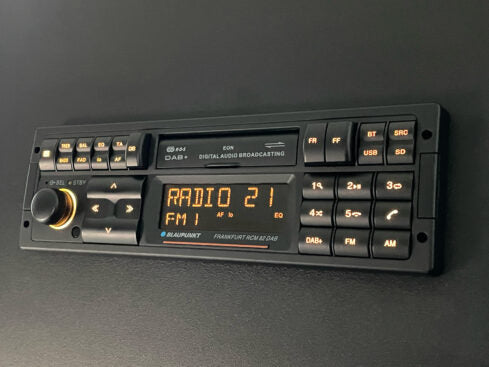

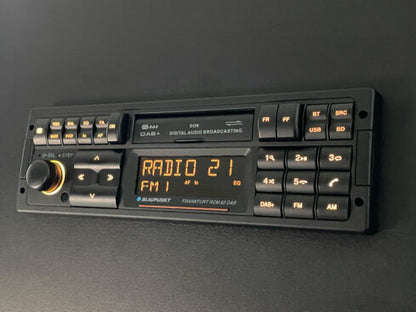

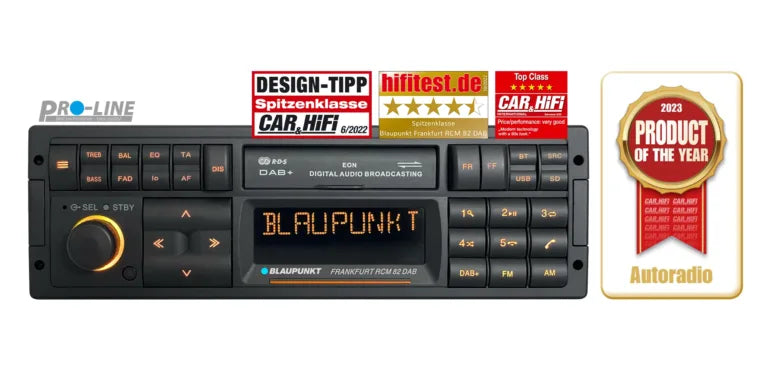

Blaupunkt Frankfurt RCM 82 DAB

The classic car radio from the 90s is back!
The relaunched cult car radio "Frankfurt RCM 82 DAB" with many new features!

Over the years, some models have become true cult objects. Now we present a new interpretation of the popular 1-DIN car radio, combining the unique features of the 90s model with modern technology and new functions. The result is the Blaupunkt “Frankfurt RCM 82 DAB”.

Its user concept, simple design and crystal-clear reception contributed greatly to the popularity of the original model. In the new edition, we have retained the original design but at the same time upgraded the radio with modern Vario Colour illumination for the buttons and display.

Thanks to the Blaupunkt Codem IV FM RDS and DAB+ tuner, first-class reception remains one of the strengths of this youngtimer car radio. New are the many connectivity options, including two USB ports, an Aux input and a microSD slot.

Audio streaming via Bluetooth is also no distant dream for this returning legend. In addition, the radio is marked “Made for iPhone/iPod”, thus guaranteeing compatibility.

All audio sources can be selected directly via buttons, and many other settings can also be accessed with a simple push of a button. Additional functions are available in the clearly structured menu, which can be displayed in German or English. All settings are stored permanently, even if the battery is disconnected. This brings the entertainer from the 90s into the present.

The new “Frankfurt RCM 82 DAB” has a short installation depth – perfect for youngtimers with reduced installation space. But it’s not just the car radio itself that takes the user on a journey through time; the packaging is also carefully designed and inspired by the original.

Specifications:

Radio:
High-End CODEM IV World tuner
FM, AM, DAB, DAB+ tuner with radio text/DLS
Traffic function
Travel store
Service following
Introscan for preset stations and bands

Media player:
USB (2x), microSD with support for MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV
Analog audio input on the front (AUX-IN)
Support for Apple iPod

Bluetooth:
Telephony via internal or external microphone
Audio streaming with track information
Audio mix options for mobile navigation
Support for voice assistants (e.g. Siri, Google, Alexa)
Automatic activation on incoming call (Wake-up on call)
Two phones can be connected at the same time (Twin-Connect)
Phonebook access

Sound:
Digital Signal Processing (DSP)
2x 14-band equalizer (separately adjustable for front and rear channels)
Audio presets
Loudness function
4-channel preamp output + subwoofer preamp output
4 x 50 Watts

Generally:
Adjustable illumination color for buttons and display (Vario Color, 4,096 colors)
2-line display
Brightness control for display and buttons (DIM function)
Direct access to all audio sources
Permanent memory storage
Short chassis (low installation depth)
IR remote control (compatible with RC-10)
Steering wheel remote control support (analog SWC input)

Technical specifications:

RADIO ANALOGUE / DIGITAL:
Tuner Type: High-End Automotive Tuner Blaupunkt CODEM IV
World Tuner (switchable): EU, USA, South America, Thailand
Frequency bands: FM, AM, DAB, DAB+
Frequency band FM: 87.5 – 108 MHz
Frequency band MW: 531-1602 / 530-1710 kHz
Channels (frequency bands) DAB/DAB+: 5A-13F (174.928-239.200 MHz)
Station memory: 15x FM, 10x AM, 15x DAB
Deactivatable memory levels: FM2, FMT, AM, AMT, DAB2, DAB3
Station Display (PS): Yes
Radio Text / Radio Text Plus (RT/RT+): Yes / No
DLS/ENSEMBLE/SERVICE display: Yes / Yes / Yes
Alternative frequency function (AF): Yes
Traffic radio (TA) FM/DAB: Yes / Yes
RDS Time (CT): Yes
Enhanced Other Networks (EON): Yes
Regional function (REG): Yes
Program Type Identification (PTY) FM/DAB: Yes / Yes
PTY search FM/DAB: Yes / Yes
Travelstore / Number of Travelstore presets: Yes / 5x FMT, 5x AMT
Band Scan + Preset Scan FM/DAB: Yes / Yes
Sensitivity (FM): Two levels (lo/dx)
Noise reduction (FM): Yes
Hi-Cut (FM): Yes (multi-step adjustable)
DAB-DAB Service following: Yes
DAB-FM Service following: Yes
Service Scan: Yes
Ensemble/Service Selection: Yes / Yes
Ensemble/Service browsing: Yes / Yes
Frequency response FM: 30 – 15,000 Hz ± 3 dB
Frequency response DAB: 20 ​​– 20,000 Hz ± 3 dB

MEDIA PLAYER:
Front AUX input: Yes (3.5 mm jack)
AUX detection / automatic source activation: Yes
USB front: Yes (type A, recessed connector)
Rear USB: Yes (Type A, cable)
Memory card reader: Yes (microSD, microSDHC, microSDXC)

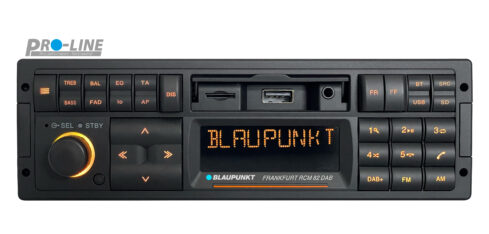

Hidden front inputs: Yes (USB & microSD can be used with the door closed)
Compatible file system (USB, memory card): FAT16, FAT32, exFAT
Max storage size (USB, memory card): > 128 GB
Max number of files/folders (USB, memory card): > 30,000
Playback format: MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV
Display options: ID3V2 (title, artist, album), folder, file, play time
Folder & file browsing: Yes
Scrolling: Yes (single/continuous)
iPod, iPhone control: Yes (front and rear USB)
Folder/Media Mixing: Yes / Yes
Repeat Title/Folder/All: Yes / Yes / Yes
Mix / Repeat / Scan: Yes / Yes / Yes

BLUETOOTH*
Phone calls: Yes
Internal microphone: Yes
External microphone connection: Yes
Answer/reject calls: Yes / Yes
Phonebook access: Yes (max. 1000 numbers)
Audio streaming: Yes
Audio streaming with ID3 track display: Yes (Title, Artist, Album, Playtime)
Voice assistant access (e.g. Siri, Google, Alexa): Yes
Mobile navigation audio mixing: Yes
Automatic activation on incoming call: Yes (when radio is off + ignition on)
Quick pairing without PIN: Yes
Automatic reconnection: Yes
Bluetooth version: 5.0 LE
Number of paired devices: max. last 5
Number of devices connected simultaneously: max. 2 (Twin Connect)
Supported profiles: A2DP, AVRCP, HFP, SPP
Audio codecs: aptX, AAC, SBC
(Feature availability and support depends on the phone/app used!)

SOUND:
Equalizer number of bands/design: 2x 14 / parametric
Bass/treble adjustment: Yes / Yes (+/- 12 steps)
Source-specific bass/treble adjustment: Yes
Balance/Fader: Yes / Yes (+/- 12 steps)
HPF/LPF: Yes, separate for front/rear channels, variable
Loudness: Yes
Sound presets: Yes (Rock, Pop, Classical)
Speaker outputs (channels): 4
Preamp outputs (channels, voltage): 4 (RCA, < 4V)
Max power: 4 x 50 watts
Sine wave power at 14.4 V: 4 x 24 watts (according to DIN 45324)
Subwoofer output: 2 (RCA, variable gain/frequency)

GENERALLY:
Display: LCD, negative, anti-reflective, wide angle, 2 lines, Alphanumeric/Symbols
Display/button illumination color: Vario Color, 4,096 colors
Day/night mode: Yes (manually/via dimmer connection)
Brightness: Multi-step adjustable, variable
Time display: Yes
HMI language: English, German
Low standby power consumption: Yes (< 3.5 mA)

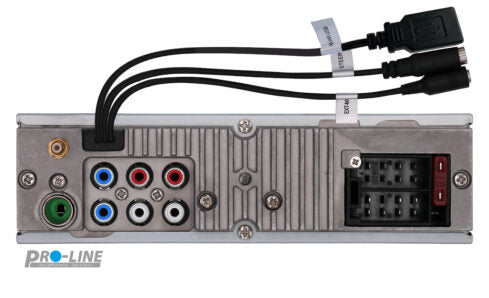

Antenna connections: FM DIN/ISO, DAB SMB (with 12V phantom power)
Phone mute: Yes
External hands-free microphone connector: Yes
Remote control: Yes (IR input for RC-10 and card remote control)
Steering Wheel Control (SWC): Yes (analog, programmable, pre-programmed)
Variable scan time: Yes
Confirmation signal: Yes (can be deactivated)
Front panel type: Fixed panel
Panel/decorative ring color: Black / Black
Software update: via USB
Permanent Memory: Yes (Settings & Presets)
Demo mode: Yes
Weight: approx. 0.67 kg

Measure:
Chassis: 50mm x 178mm x 116mm (H x W x D)
Front panel: 58 mm x 186 mm x 10 mm (H x W x D, without buttons)
Operating voltage: 10.5 – 14.4 V
Power consumption:
In operation: < 10A
10 sec after ACC shutdown: < 3.5 mA

DELIVERY CONTENTS:
External BT microphone: Yes
Unlocking tool: Yes
Connectors (ISO A, B): Yes
Antenna adapter (DIN/ISO): Yes
DAB antenna: Optional accessory
IR remote control: Optional accessory
