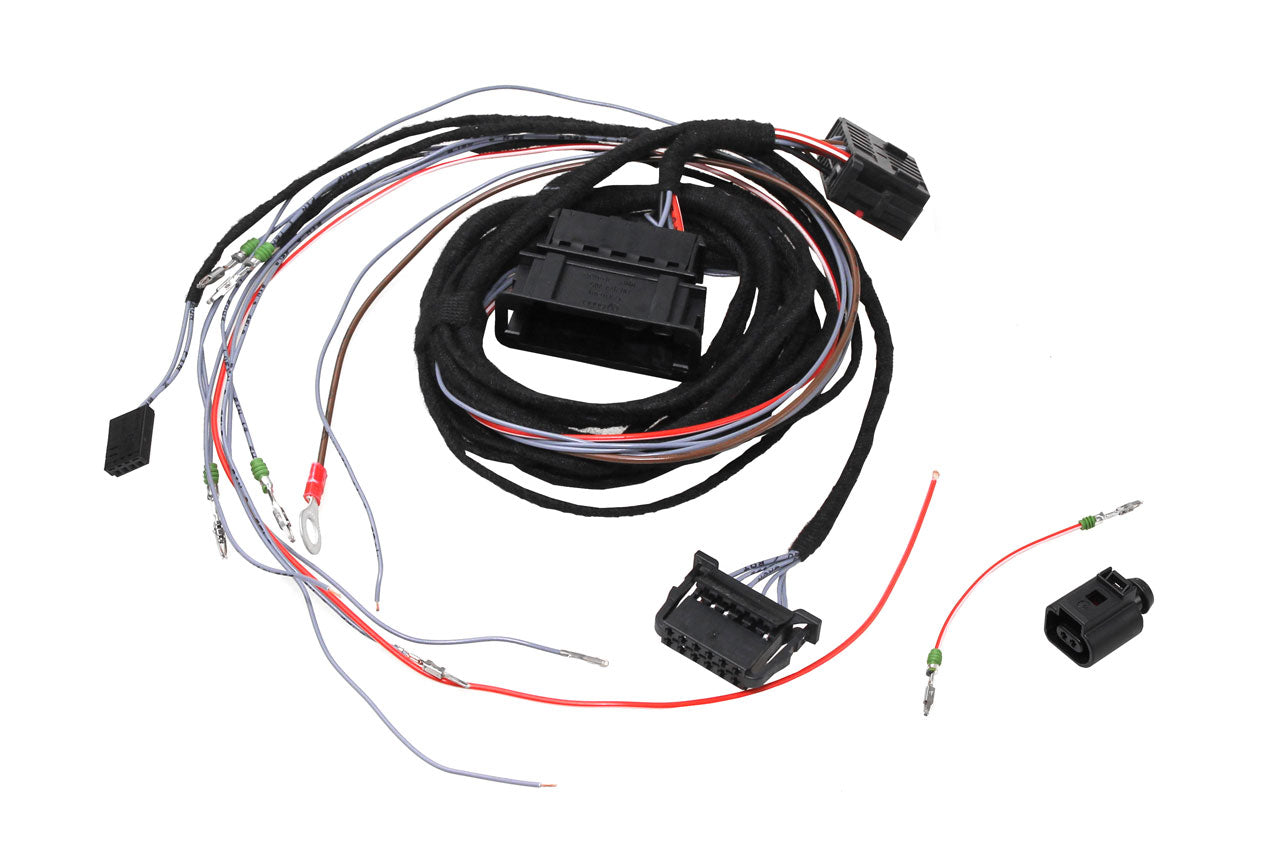

Climatronic cable set for VW Golf 4, Bora

Specific cable set for the conversion of a standard air conditioner to a Climatronic system for VW Golf 4, VW Bora

Specific cable set for the conversion of a standard air conditioner to a Climatronic system for the following vehicles:VW Golf 4VW BoraThis cable set establishes the connection between ventilation box and fan control unit as well as the temperature sensorFurthermore, it serves to connect all components to the central electricsScope of delivery:cable setNote:This cable set is only suitable for air conditioning boxes with a 16 pin connectorFor an uncomplicated conversion, we recommend the following procedure:Emptying the air conditioning system (refrigerant)Remove dashboard (previously remove radio and instrument cluster)Replacement of the entire ventilation boxConnection and installation of the control unit and the associated cable setConnection of the ventilation box with the optionally available cable setInstallation of all components in reverse orderConnection fan control unit and temperature sensorFilling the Climatronic
