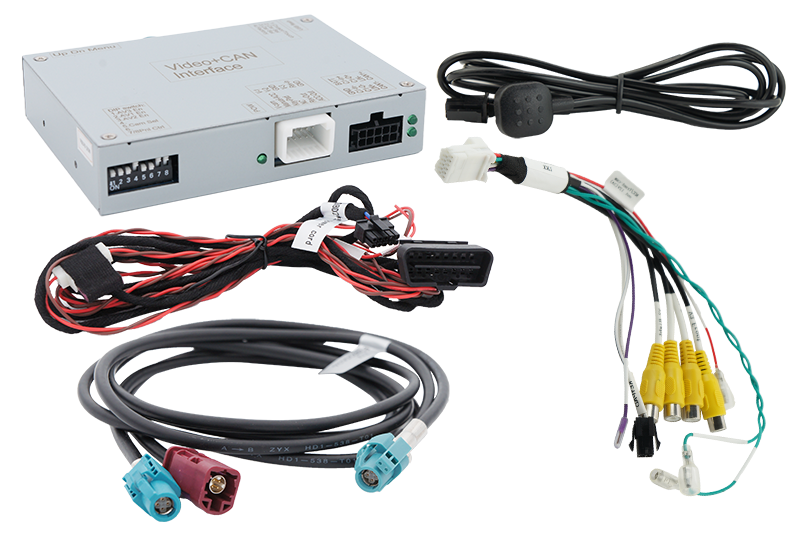

NAVLINKZ Interface for Volvo Sensus Connect

The video interface enables the connection of a rear view camera and a front camera with automatic activation to the vehicle manufacturer's factory-fitted infotainment system.

Product features:
1 RCA video input for rear view camera
1 RCA video input for front camera
Automatic switching to rear view camera input when reverse gear is engaged.
Automatic activation of the front camera for 10 seconds after reverse gear is engaged.
NTSC compatible video inputs.

Fits the following models:

VOLVO:
S60 model year 2020 to 2022,
S90 model year 2017 to 2022.
V60 model year 2016 to 2022.
V90 model year 2016 to 2022.
XC40 model year 2019 to 2022.
XC60 model year 2018 to 2022.
XC90 model year 2015 to 2022.

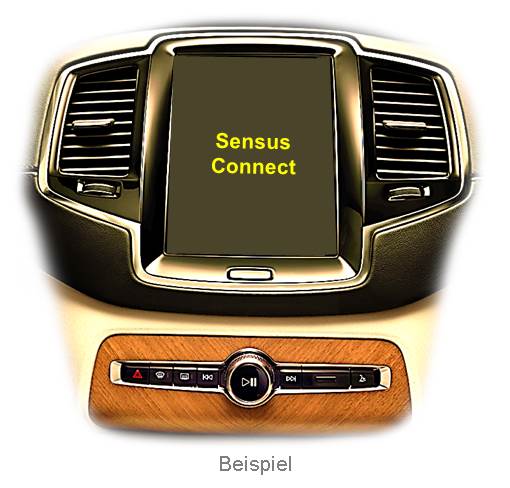

Only for models with Sensus Connect and 8.7-inch screen.

Limitations:

Google Navigation:
NOT compatible with vehicles equipped with Google Navigation from model year 2023 onwards.

Video only:
The interface cannot output audio.

Retrofitted front camera:
Switching to the front camera occurs automatically for 10 seconds after reverse gear is disengaged. Manual switching to the front camera is also possible via a button.

Video sources: Only NTSC video sources are compatible.

Technical specifications:
Operating voltage: 7~25V DC.
Quiescent current: 10 mA.
Power consumption: 250 mA.
Video input: 0.7~1V.
Video input format: NTSC.
Operating temperature range: -40°C to +85°C.
Interface dimensions: 118 x 25 x 104 mm (W x H x D).
