Phoenix Gold ZXM500.1

Small in size, big in power.
The ZXM500.1 is an impressive class-D mono mini amplifier. The ZXM amplifiers are designed to be as small as possible without compromising on sound quality, power and features. The ZXM500.1 is a 1-channel amplifier with 500W RMS into 1 ohm. The output power into 2 Ohm is 360W RMS and into 4 Ohm is 230W RMS. This means it can be driven between 4-1 Ohm with plenty of power.

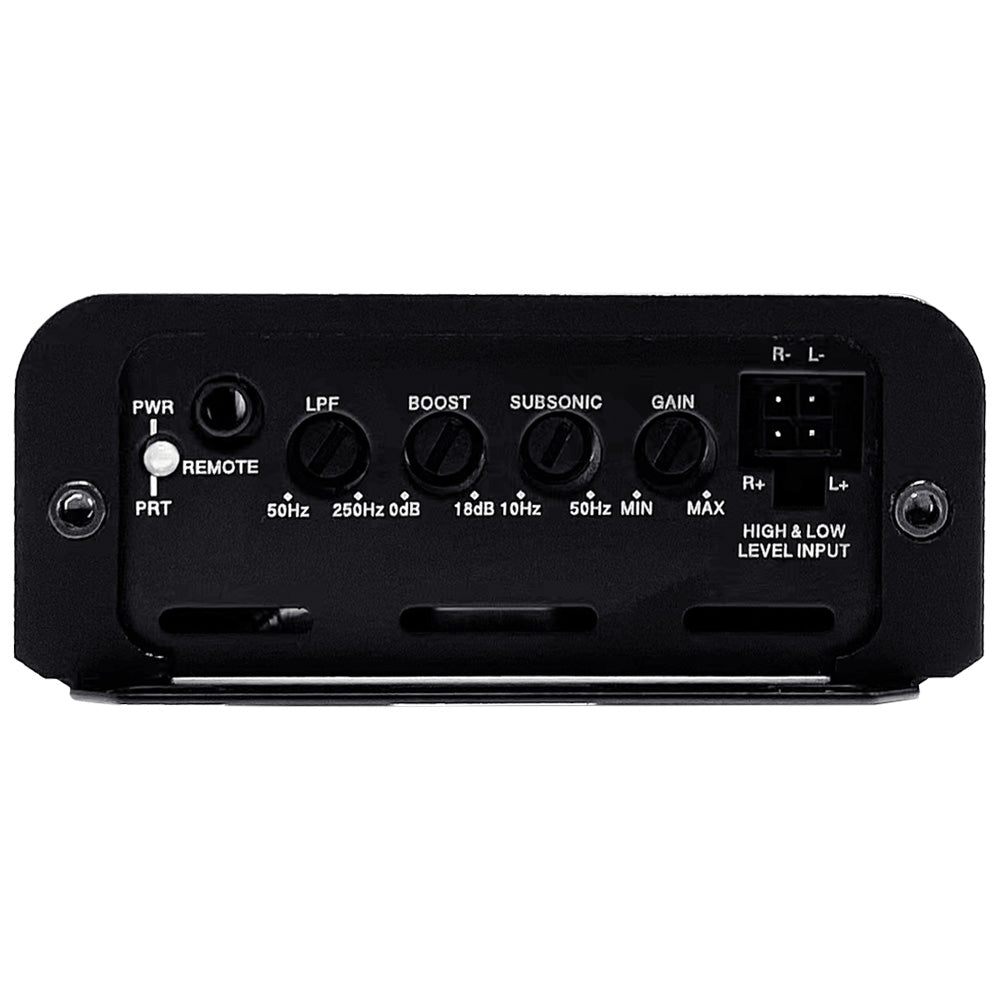

The ZXM500.1 has a 24dB low-pass filter and also an adjustable Subsonic filter. This amazing amplifier also has a bass boost function and comes with a remote control to adjust the level. The ZXM500.1 amplifier can

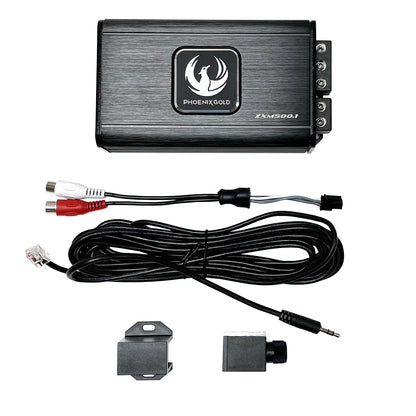

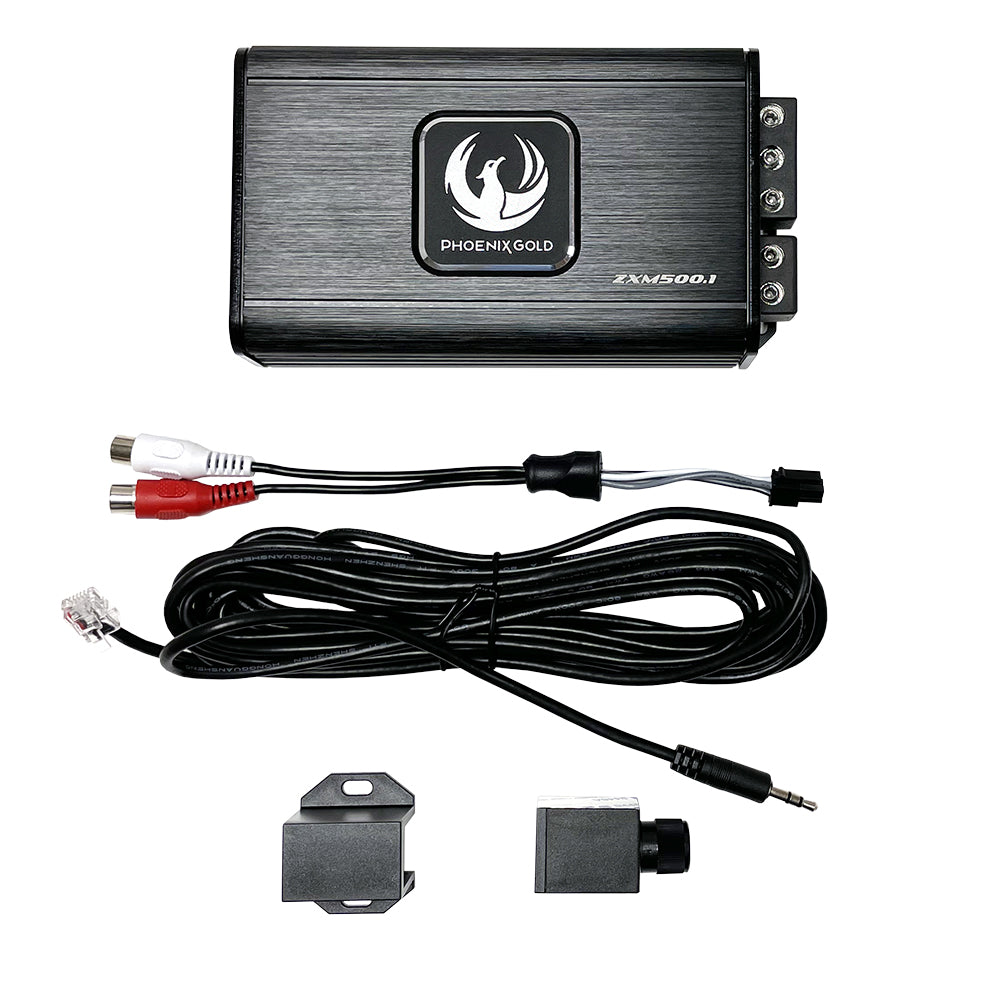

handle both RCA and High-level input on the same terminals and the included connectors make it easy to connect.

ZXM500.1 Specifications:
• Class-D Mono Mini Amplifier
• Power (MAX) 1000W
• Output power (RMS)
• 500W x 1 @ 1Ohm
• 360W x 1 @ 2Ohm
• 230W x 1 @ 4Ohm
• Frequency range: 20Hz – 500Hz
• Signal to noise ratio: >90dB
• Total Harmonic Distortion: <0.3%
• Low pass filter: 40Hz – 250Hz (24dB/Oct)
• Subsonic: 10Hz – 50Hz (24dB/Oct)
• Bass boost: 0 – 18dB @ 45Hz
• Automatic switching on of high level input
• Remote control included
• Dimensions (L x W x H) 165 x 83.1 x 34.8 mm
