Phoenix Gold ZXM500.4

Small in size, big in power.
The ZXM500.4 is an impressive 4-channel mini amplifier in class D. The ZXM amplifiers are made to be as small as possible without compromising on sound quality, power and features. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This corresponds to 4x80W RMS in 4Ohm but the amplifier is stable to 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged to 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/LP filters and also a switch to use 2-channel input or 4-channel input low or high level.

• Class-D 4-channel mini amplifier
• Rated power (RMS):
• 125W x 4 @ 2Ohm.
• 80W x 4 @ 4Ohm.
• 250W x 2 @ 4Ohm bridged.
• Frequency range: 20Hz – 20kHz.
• Signal-to-noise ratio: > 90dB.
• Total harmonic distortion: < 0.3%.
• Low pass filter: 40Hz – 400Hz (12dB/oct).
• High pass filter: 40Hz – 400Hz (12dB/oct).
• High-level input with automatic power-on.

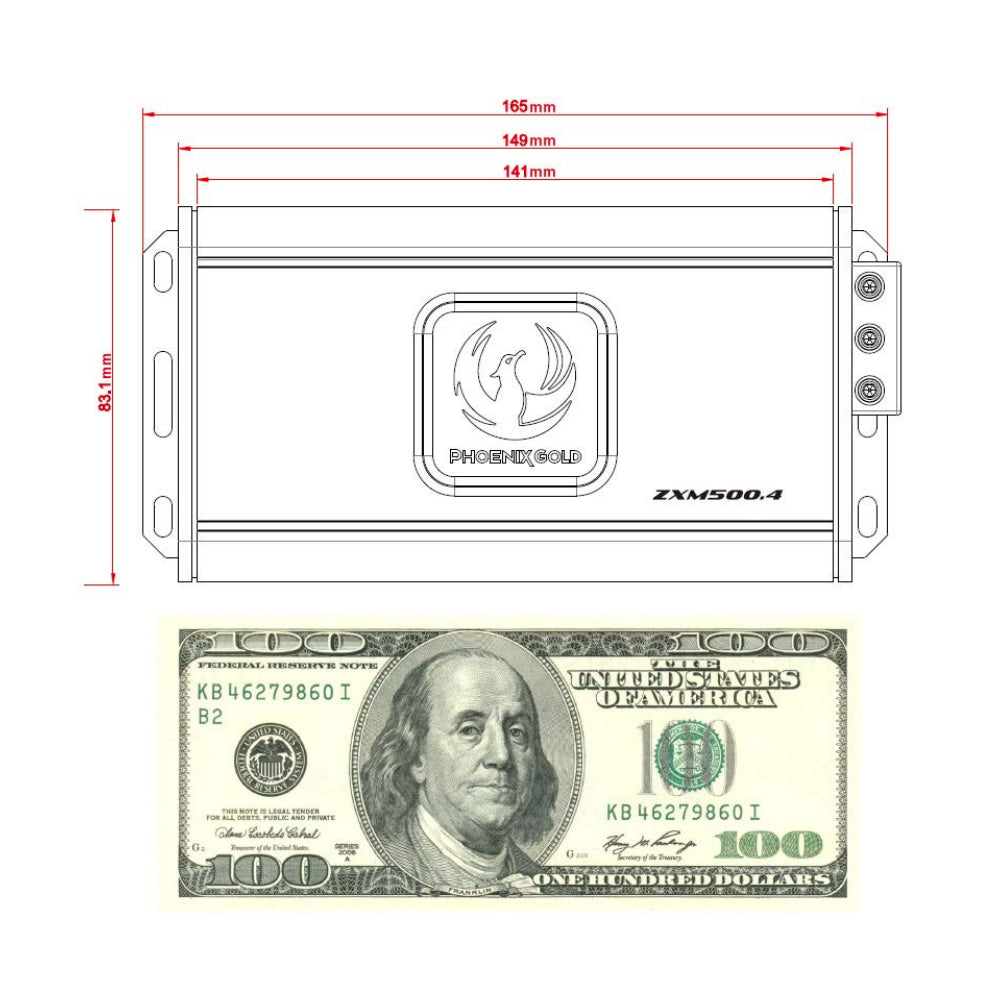

• Dimensions (LxWxH): 165 x 83.1 x 34.8 mm
