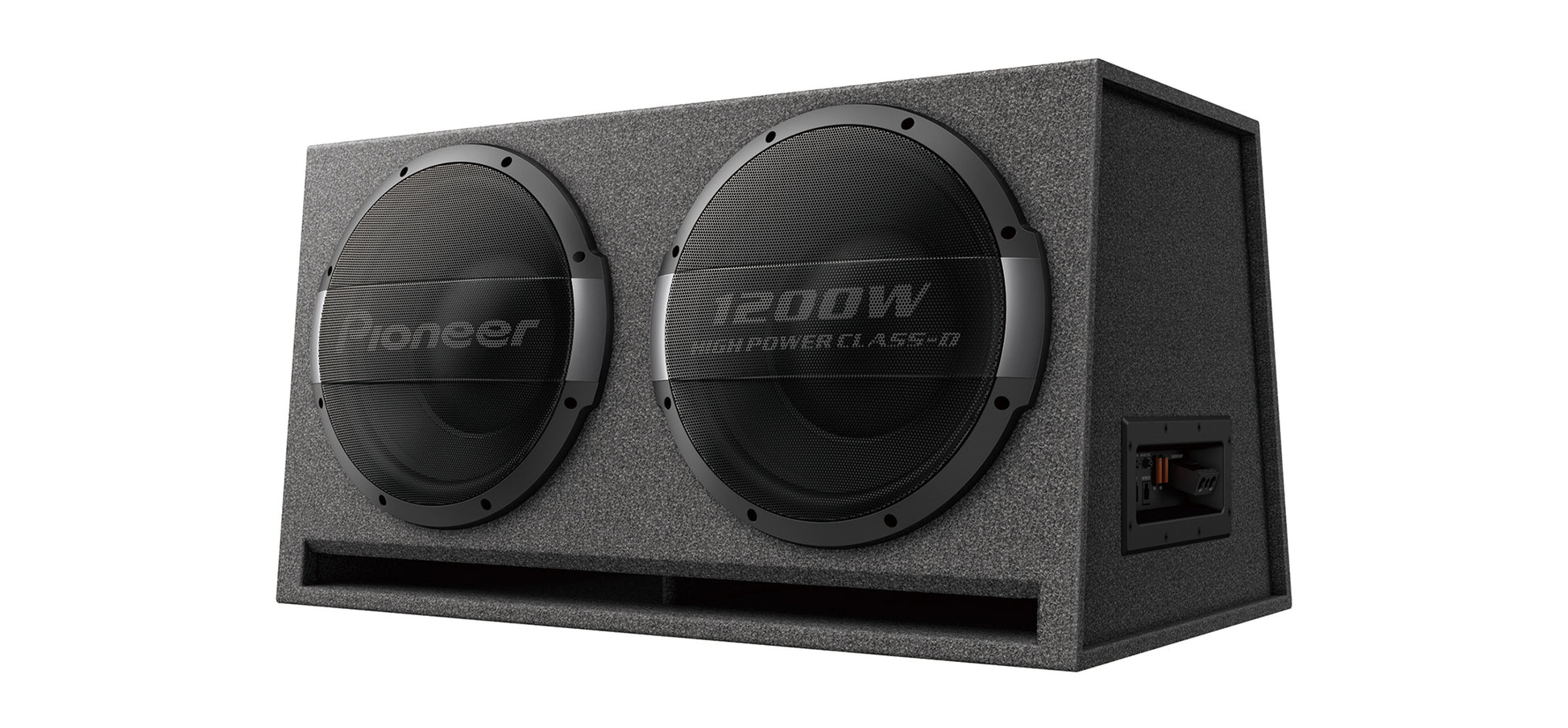

Pioneer TS-WX1220AH

Upgrade your car audio system with this easy-to-install dual-driver subwoofer package for strong, powerful bass, a maximum power of 3,000 W and a nominal power of 1,000 W. (Remote control and cables included).

The enclosure mechanism and bass reflex port of the TS-WX1220AH are optimized to take advantage of the low frequency response of the dual drivers with two 30cm subwoofer units. This allows the original bass reproduction from the unit and allows you to enjoy heavy, powerful bass reproduction of high quality. Equipped with a Bass Boost circuit, which allows you to adjust the sound pressure level and frequency characteristics. You can customize your favorite music just the way you want.

CarSoundFitApp (N)
Size 30cm x 2 (12"x2)
Type Active subwoofer system with dual drivers and bass reflex
Maximum input power 3000 W
Nominal power 1000 Watt
Frequency response 20 Hz–2.9 kHz
Sensitivity 118 dB (in the car, 2 V) dB
Impedance 0.3 Ω
Woofer, material Mass
Surround Urethane
Voice coil, type Round copper wire in 4 layers with single voice coil
Voice coil, bobbin type Kapton
Connections Faston
Magnets Ferrite
30cm / 12" Enclosed Active
LPF 50 Hz–200 Hz (-12 dB/oct)
Weight 22.8 kg
Size 745x459(375)x400mm
Active Subwoofer
