Alpine X703D-Q5

Alpine introducerar 3:e generationens Alpine Style-system för Audi Q5 (årsmodell 2009-2016)

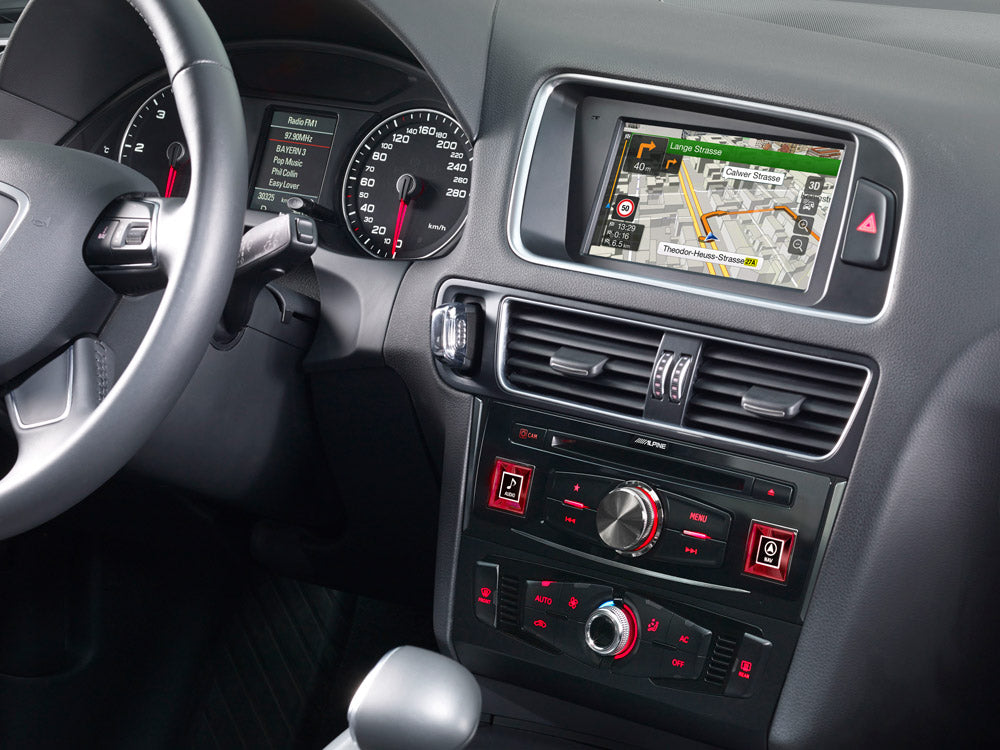

Denna avancerade Navi Station ger din Q5 den senaste mediekompatibiliteten, pekskärmstekniken, den senaste navigationstekniken och Alpines ljudkvalitet. Det inbyggda navigationssystemet iGo Primo med TomTom-kartor har 3 års kostnadsfria kartuppdateringar och är nu kompatibelt med din förarinformationsdisplay i cockpit för att visa pilar sväng för sväng.

Det inkluderar också onlinenavigeringsfunktion för att använda navigeringsappar som Waze, Google Maps, Sygic, Magic Earth med Apple CarPlay och Android Auto. Både Apple CarPlay- och Android Auto-appar kan komma åt Alpine-navigationsantennen för högsta positioneringsnoggrannhet.

3:e generationens Audi System har en mycket snabbare fyrkärnig CPU och mycket mer systemminne för snabb ruttberäkning och smidig zoomning och rullning.

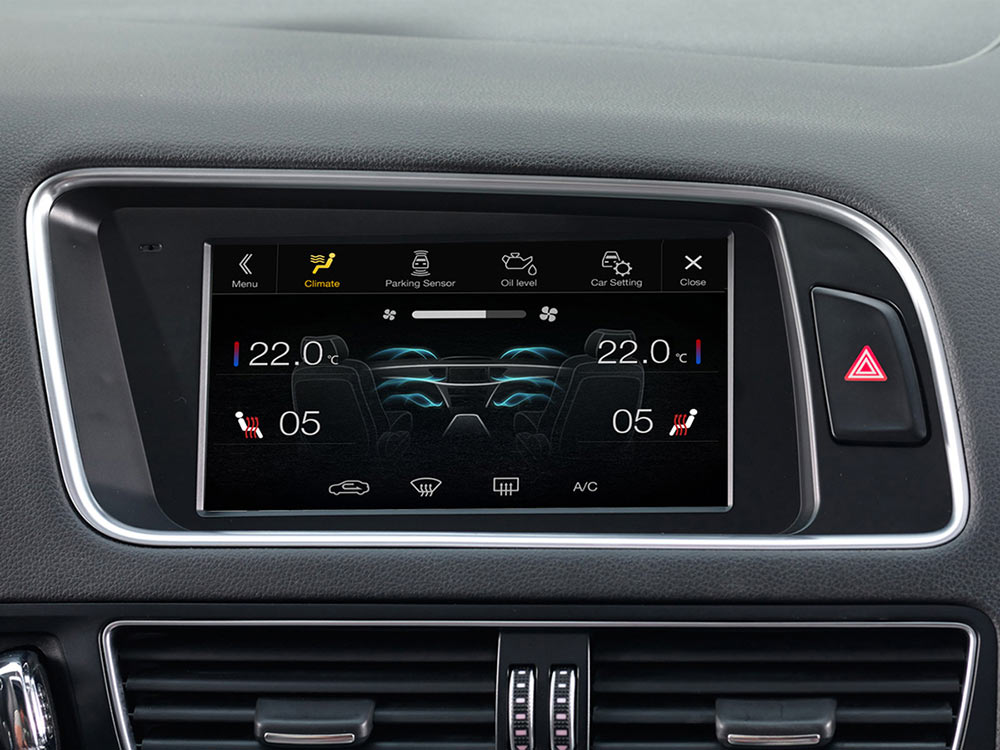

Alla systemkomponenter är utformade för att passa perfekt på befintliga installationsplatser och integreras helt med fordonets elektroniska system.

Kompatibla bilar:

Audi* Q5 2009 - 2016 Audi Chorus, Consert och Symfony
* Ej kompatibel med bilar med Audi MMI navigation eller navigation plus-system.

FEATURES:

Tuner:
Memory Pre-sets (FM: 24 / MW: 6 / LW: 6)
Memory: Auto Memory
Seek Mode: Local / DX Selection
RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB Tuner:
DAB+ Tuner Built-in
DAB+/DMB Supported
DAB+ Slideshow Service
DLS (Dynamic Label Service)
DAB Service Following
RDS Fallback (where available)
Service Pre-set: 18 Pre-set Memory
Auto Ensemble/Service Memory
Service Search Function
PTY Search Function
Alphabet Search Function
Antenna Power Supply Selection

BLUETOOTH®:
Built-in BLUETOOTH® Module
Wide Band Speech Technology
HFP (Hands-Free Profile) Compatible
Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
Advanced BLUETOOTH® Technology
Connection: SSP (Simple Secure Pairing) Supported
Individual Profile Connection Hands Free Phone and Music Streaming
Phone Book: Phone Book Synchronization
Speed Dial: 4 Pre-set Memory (per phone)
Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
Device Name Display
Auto Answer
Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
Redial Function
Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
DTMF (Touch-Tone) Function
Signal Strength Indicator
Battery Level Indicator
Menu Language Selection: 24 Languages

Made for iPod® / iPhone®:
Compatibility for iPod/iPhone: compatible with all models except 1st and 2nd generation iPhone
Connection: KCU-461iV / KCU-471i Required (Sold separately)
Music & Video Playback Compatible with KCU-461iV only
Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
Alphabet Search
Artwork Display
Direct Up / Down: Playlist / Artist / Album / Genre / Composer
M.I.X. (Shuffle) Play: Song, Albums, All
Repeat
Battery Charging
Connectivity

Works with Apple CarPlay (requires CarPlay enabled iPhone)

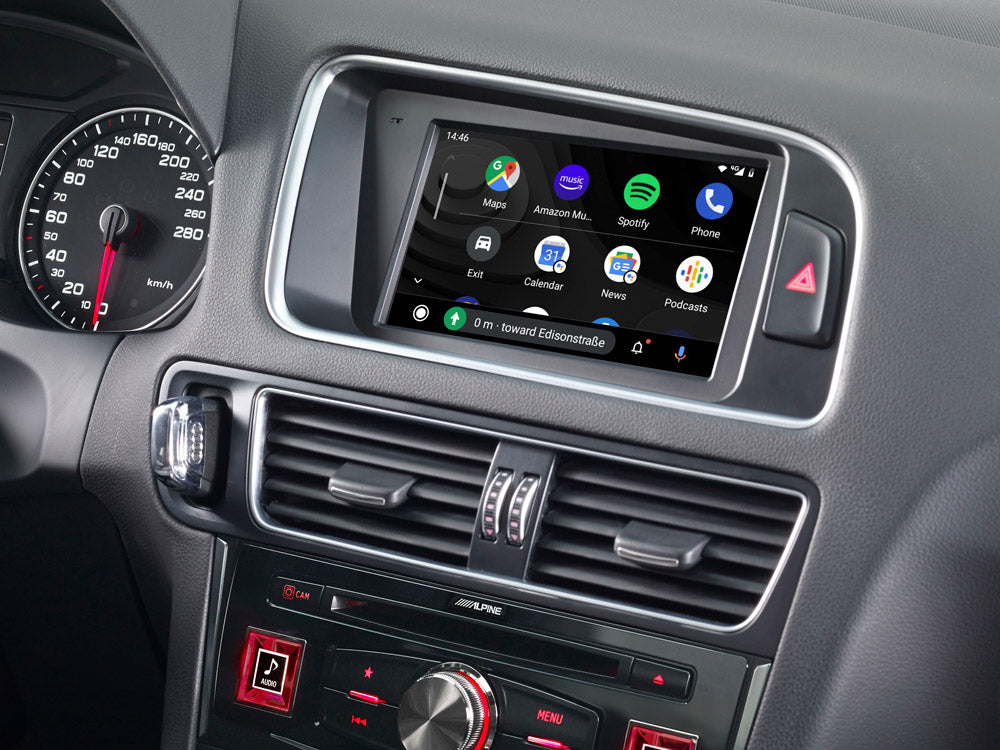

Works with Android Auto (Requires Android Auto enabled smartphone)

Navigation Functions:
Map Coverage: 48 Countries (Western and Eastern Europe)
Menu Language: 29 Languages
Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
Advanced Address Search
Post Code Search
Free Form Search
Partial Name Search
Advanced POI Functions
Smart Routes: Smart Routes using historic traffic patterns
Advanced Route Planning
Eco Route Search
7 Alternative Route Recommendation
Advanced TMC Mode
Map Display Mode: 2D Heading Up, 2D North Up, 3D
3D City Mode: 3D Building/Icon Display
Elevation Map Display: 3D maps with elevation mode
3D Motorway Junction View: Junction View with Sign Post
Drive Lane Suggestion
Tunnel Mode
Highway Mode
Voice Guidance Mixing
Text-to-Speech
Direct Phone Call from POI data
3 Positioning Sensors: GPS / Glonass, Gyroscope, Vehicle Speed Pulse
USB Media Connection
USB Connection: USB Extension Cable Included
Music Playback: FLAC/MP3/WMA/AAC compatible
Video Playback: MP4 compatible
File / Folder Name Search
Tag Info Search
Folder Up / Down
M.I.X. Random Play
Repeat

Sound Tuning:
Bass Engine SQ
Bass Engine™ Pro
Subwoofer Level Adjustment
Subwoofer Phase Select
2V High Voltage PreOut
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
Dual HD EQ (9-band Parametric Equalizer front/rear)
6 Channel Digital Time Correction
Digital Crossover Setting
Customized Sound Setting by Car Type
MediaXpander HD
Application Volume Level Setting
Sound Setting Data Download
Easy, Step-by-Step Sound Customization
Alpine TuneIt App ready

General:
Power Output: 4 x 50 W High Power Amplifier
Advanced Power IC

Display:

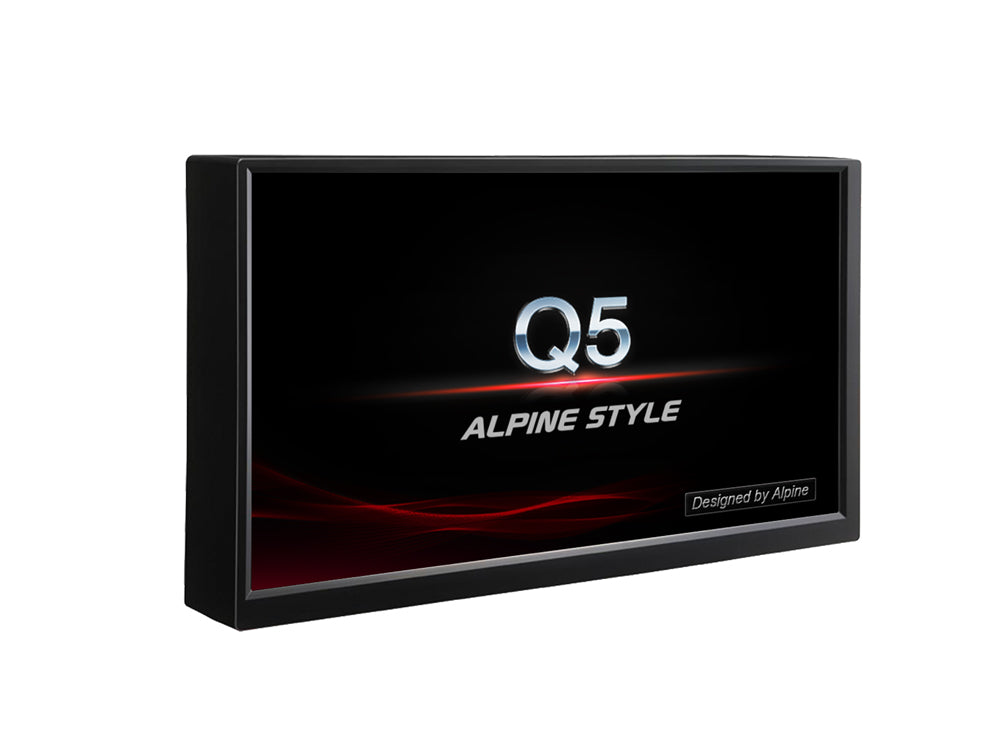

7′′ Capacitive WVGA High Resolution Display
White LED Backlighting System
50/50 Split Screen: Left / Right Position Changeable
Control Type: Touch, Drag, Flick
My Favourites Function
Automatic Setting Change for 2 Users
High Grade Audiophile Design
3 PreOuts (2V, Front / Rear / Subwoofer) KTX-PRE1 Required (Sold separately)
AUX-In: 1 A/V AUX Input (3.5mm micro jack)

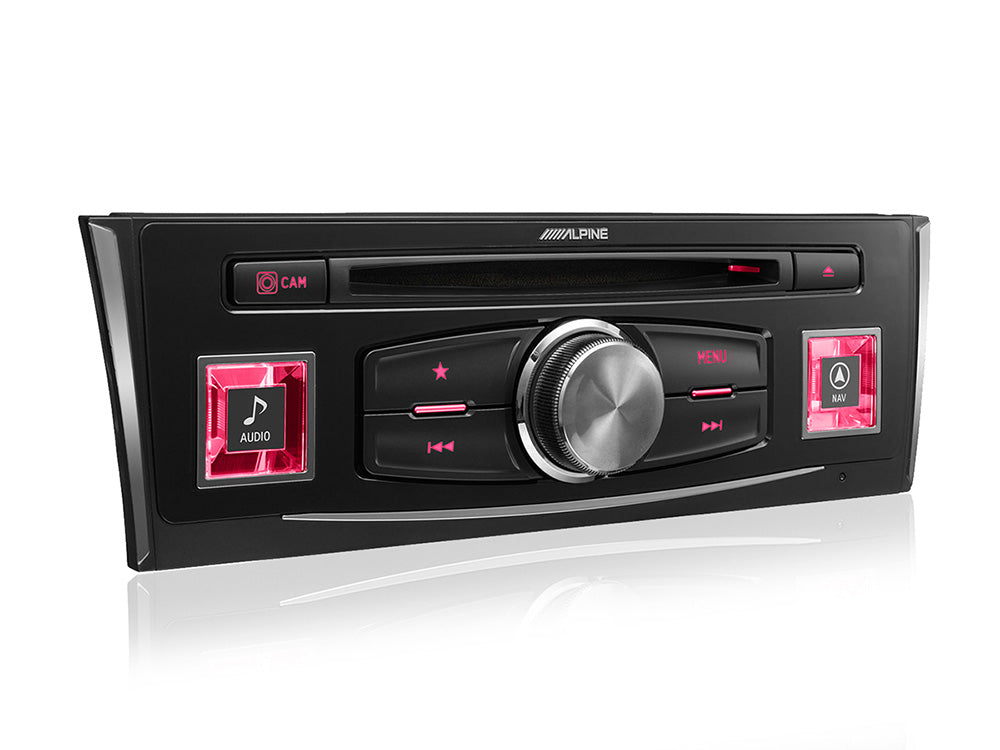

Steering Wheel Remote Control Function
OEM Sub-display Function
Remote Control Ready
Navigation Guidance Mix

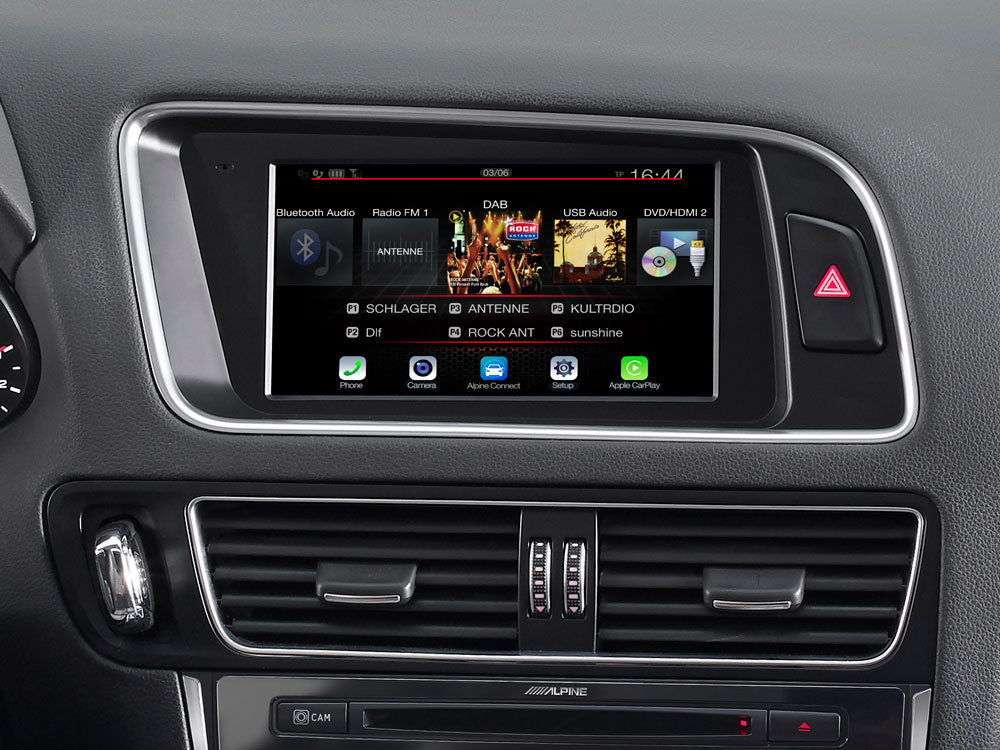

Camera Connection & Built-in Controls for Multi-View Cameras / compatible with original camera
Camera Guide Line Adjustment
Rear-view Camera Display Automatic Boot-up
Multi Camera Selector Interface KCX-C250MC ready
Simple Mode & Info Mode Display Selection
Visual EQ
Live Contrast Adjustment

Menu Language:
24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)

Clock
Auto Dimmer
Anti-theft security code
Firmware Updatable
Power Antenna Lead
Remote Turn-On
HDMI Input / Output (Alpine Special HDMI connector required)
HDMI Selector Interface KCX-630HD Ready
Engine Start-Stop unaffected
CAN Connection Interface Included
Ready for optional DVD Player DVE-5300X
Map & Database
Online Map Update via alpine.naviextras.com
Featuring TomTom Maps
3 Years free of charge map update (multiple updates possible)
Installation

Includes installation brackets, wiring harness and CAN bus interface for complete installation.

SPECIFICATIONS:
Screen Size:
7-inch Capacitive WVGA
LCD Type: Transparent Type TN LCD
Operation System: TFT Active Matrix
Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC, PAL

Max Power Output Ratings:
Max Power Output: 4 x 50 W

FM Tuner:
Tuning Range: 87.5 - 108.0 MHz
Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB

MW Tuner:
Tuning Range: 531 - 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner:
Tuning Range: 153 - 281 kHz
Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB:
USB Requirements: USB 2.0
Max. Power Consumption: 1,500 mA (CDP Support)
USB Class: Mass Storage Class, Play From Device
File System: FAT 16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format ′′.m4a′′ file
Flac Decoding
USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.008%
Dynamic Range(at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
Channel Separation (at 1kHz): 85 dB

GPS / Glonass:
GPS / Glonass compatible navigation antenna included.

BLUETOOTH®:
BLUETOOTH® Version: Bluetooth V3.0+EDR
Output Power: +4 dBm Max. (Power class 2)
HFP: HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP: A2DP (Advanced Audio Distribution Profile)
AVRCP: AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)

Sound Tuning:
Subwoofer Level Adjustment: 0 to +15
Subwoofer Phase Setting: 0° or 180°
BASS ENGINE SQ: 5Mode, Level 0 to +6
High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
High Pass Filter (Gain): -12 to 0 dB
Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
Low Pass Filter (Gain): -12 to 0 dB
Time Correction: 0.0 - 9.9ms (0.1ms step)
Dual HD EQ Front + Rear
Parametric Equalizer (Band 1): 20 - 100 Hz
Parametric Equalizer (Band 2): 63 - 315 Hz
Parametric Equalizer (Band 3): 125 - 500 Hz
Parametric Equalizer (Band 4): 250 - 1k Hz
Parametric Equalizer (Band 5): 500 - 2k Hz
Parametric Equalizer (Band 6): 1k - 4k Hz
Parametric Equalizer (Band 7): 2k - 7.2k Hz
Parametric Equalizer (Band 8): 5.8k - 12k Hz
Parametric Equalizer (Band 9): 9k - 20k Hz
Parametric Equalizer (Gain): -14 to +14
Application Volume Level Setting: -14 to +14

HDMI Section:
Input Format 720p/480p/VGA
Output Format 480p

General:
Power Requirement: 14.4 V. DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 2 V / 10k ohms
Maximum Mounting Angle: 30°

Dimensions:
X703D-Q5: Fits for Audi Q5 left hand drive
Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
