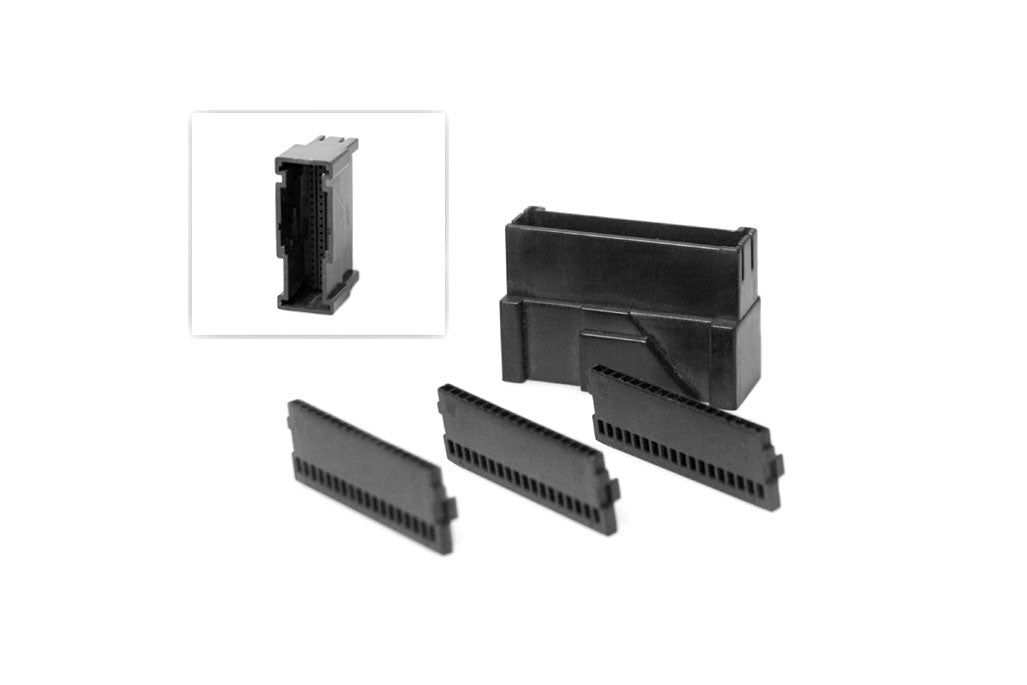

Connector male 54 pin for VW, Audi, BMW

KUFATEC mating connectors for retrofitting and repair work for factory-set plug connections in the telephone, TV, 54-pin area

KUFATEC mating connector for retrofitting and repair work for VW, Audi, BMWSuitable for factory connections on the telephone, TV54 pinThere are 3 different options available:Connector / plugOnly the pure connector is supplied hereConnector / plug + contact materialHere we deliver the connector and the required contact materialFor automotive cables FLRY 0.35mm² - 0.75mm²Fully assembled connector / plugCable length: 600mm0.5mm² / 0.75mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112Assembled single cable similar to 000 979 012 E (0.5mm²) 000 979 165 E (0.75mm²)Produced on fully automatic machines with crimp force monitoring (process monitoring)Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)Selectable options:Connector only (Connector male 54 pin)Connector + contact material (Connector male 54 pin + 54x contacts and 3x inset)Assembled repair kit (Connector male 54 pin with fully crimped connecting cables) 0.5mm²Assembled repair kit (Connector male 54 pin with fully crimped connecting cables) 0.75mm²
