Repair kit connector 4 pin plug housing Hirschmann 4 MB A 220 545 3928

4-pin plug housing Hirschmann 4 MB A2205453728 for spare parts and repairs

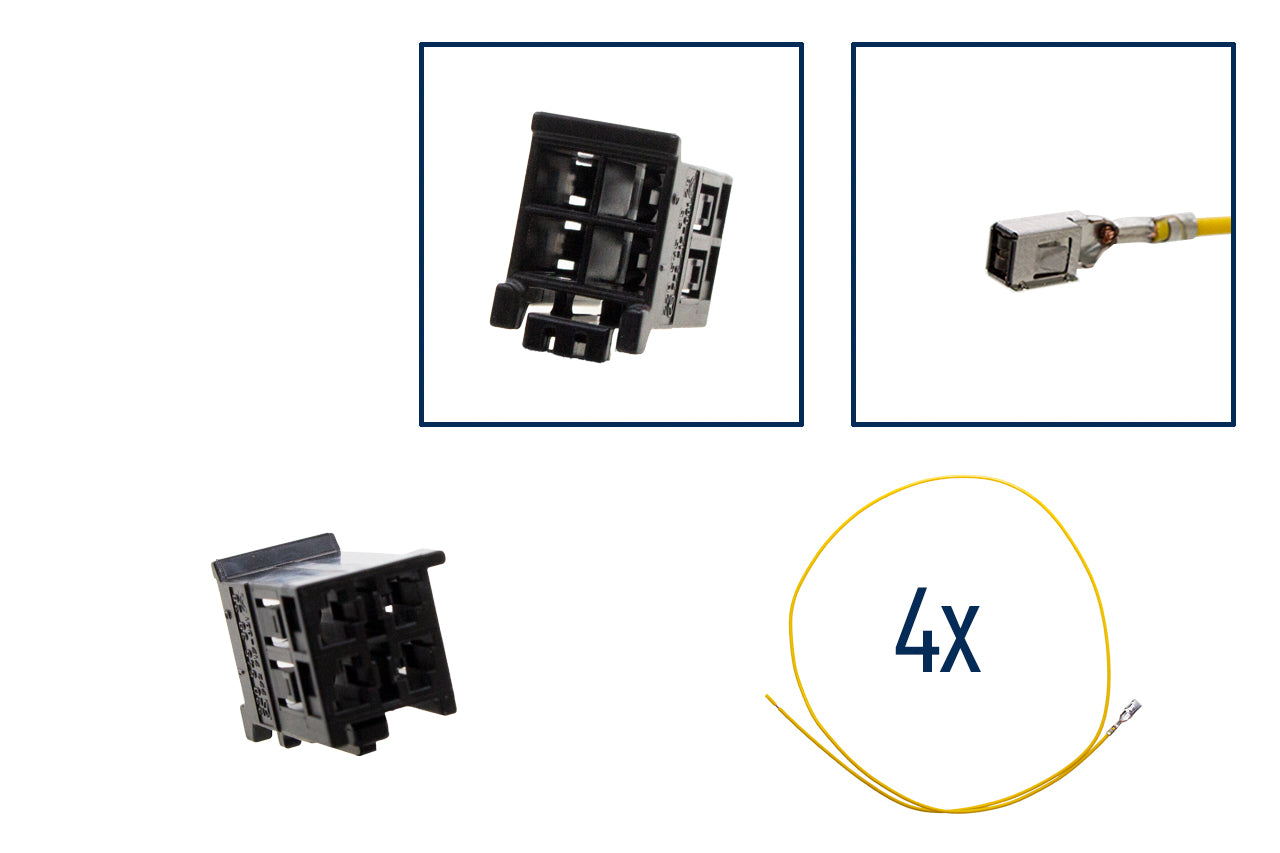

4-pin plug housing Hirschmann for spare parts and repairsConnector OE number: A 220 545 3928There are 3 different options available:Connector / plugOnly the pure connector is supplied hereConnector / plug + contact materialHere we deliver the connector and the required contact materialFor automotive cables FLRY 1.5mm² - 2.5mm²Fully assembled connector / plugCable length: 600mm1.5mm² / 2.5mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112Assembled single cable similar to 000 979 225 E (1.5mm²) 000 979 133 E (2.5mm²)Produced on fully automatic machines with crimp force monitoring (process monitoring)Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)Selectable options:Connector only (4 pin plug housing Hirschmann 4 MB A 220 545 3928)Connector + contact material (4 pin plug housing Hirschmann 4 MB A 220 545 3928 + 4x contacts)Assembled repair kit (4 pin plug housing Hirschmann 4 MB A 220 545 3928 with fully crimped connecting cables) 1.5mm²Assembled repair kit (4 pin plug housing Hirschmann 4 MB A 220 545 3928 with fully crimped connecting cables) 2.5mm²Note:The original spare part number / OE number is for comparison purposes only
