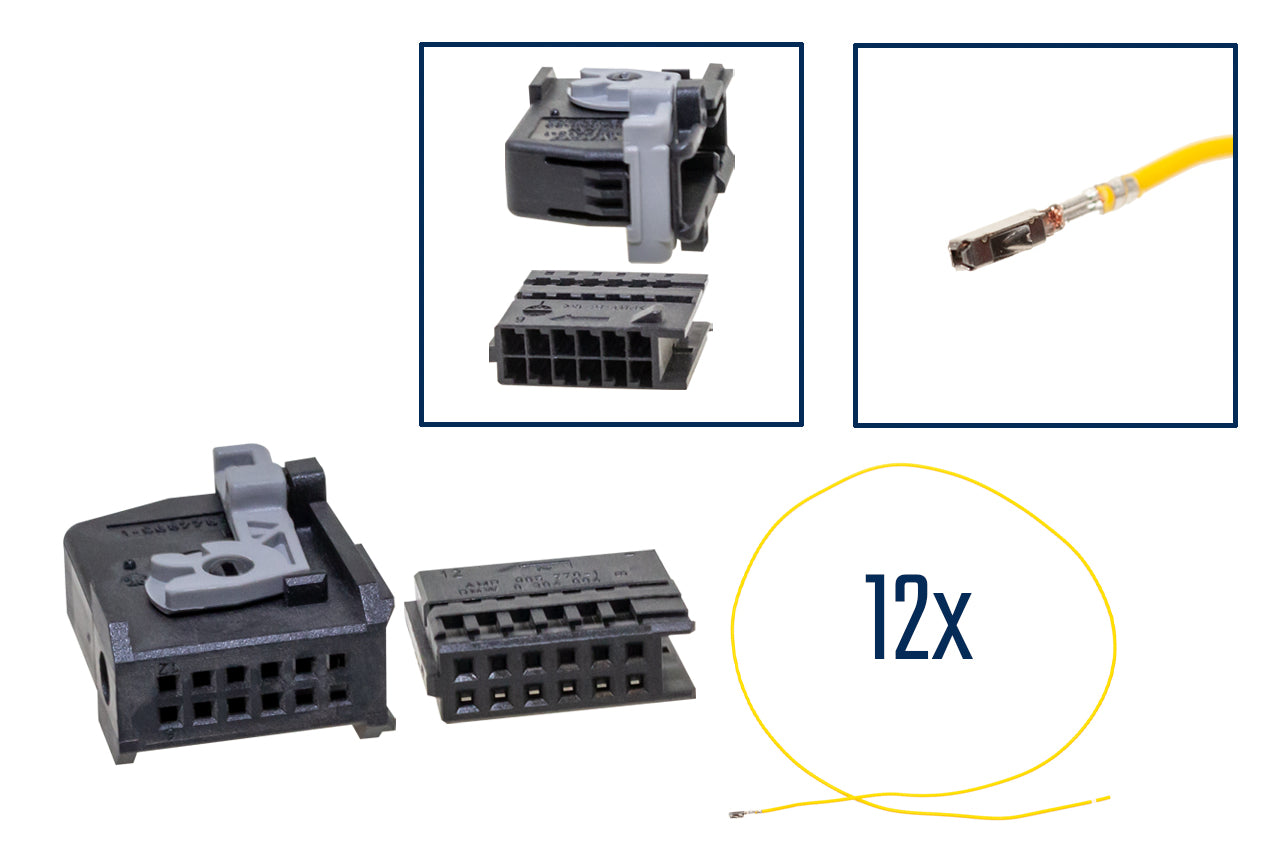

Repair kit connector 12 pin 8364664 socket housing

12-pin socket housing for spare parts and repairs

12-pin socket housing for spare parts and repairsConnector OE number: 8364664There are 3 different options available:Connector / plugOnly the pure connector is supplied hereConnector / plug + contact materialHere we deliver the connector and the required contact materialFor automotive cables FLRY 0.5mm² - 1.0mm²Fully assembled connector / plugCable length: 600mm0.5mm² / 0.75mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112Assembled single cable similar to 000 979 009 E (0.5mm²), 000 979 164 E (0.75mm²)Produced on fully automatic machines with crimp force monitoring (process monitoring)Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)Selectable options:Connector only (12-pin socket housing 8364664)Connector + contact material (18-pin socket housing 8364664 + 12x contacts)Assembled repair kit (12-pin socket housing 8364664 with fully crimped connecting cables) 0.5mm²Assembled repair kit (12-pin socket housing 8364664 with fully crimped connecting cables) 0.75mm²Note:To ensure proper function and tightness, make sure that the cable diameter and cross-section are correctThe original spare part number / OE number is for comparison purposes only
