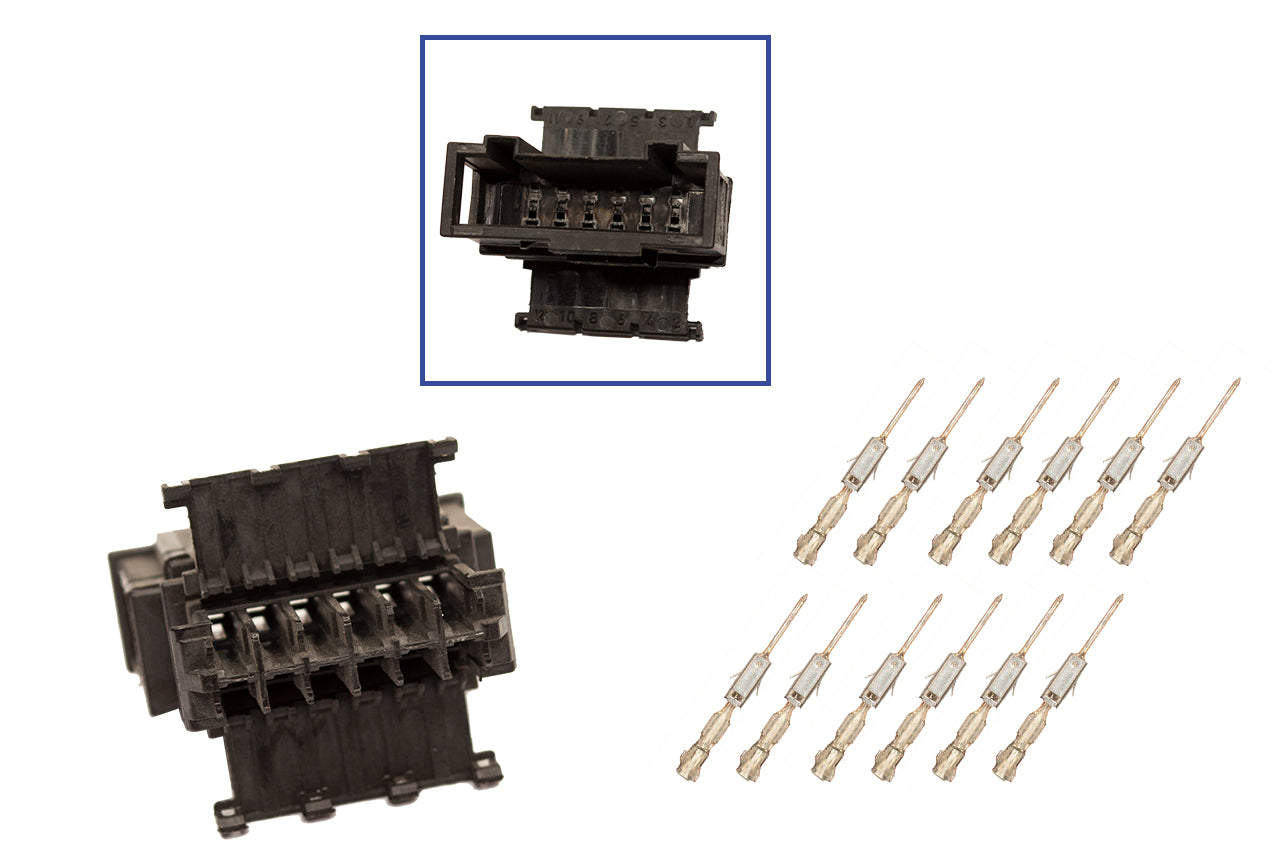

Repair kit connector 12 pin 6Q0 972 736 socket housing for VW Audi Seat Skoda

12-pin socket housing for spare parts and repairs

12-pin socket housing for spare parts and repairsConnector OE number: 6Q0 972 736There are 3 different options available:Connector / plugOnly the pure connector is supplied hereConnector / plug + contact materialHere we deliver the connector and the required contact materialFor automotive cables FLRY 0.5mm² - 1.0mm²Fully assembled connector / plugCable length: 600mm0.5mm² / 1.0mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112Assembled single cable similar to 000 979 132 E (1.0mm²) 000 979 020 E (0.5mm²)Produced on fully automatic machines with crimp force monitoring (process monitoring)Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)Selectable options:Connector only (12-pin socket housing  6Q0 972 736)Connector + contact material (12-pin socket housing  6Q0 972 736 + 12x contacts)Assembled repair kit (12-pin socket housing  6Q0 972 736 with fully crimped connecting cables)Note:To ensure proper function and tightness, make sure that the cable diameter and cross-section are correctThe original spare part number / OE number is for comparison purposes only
