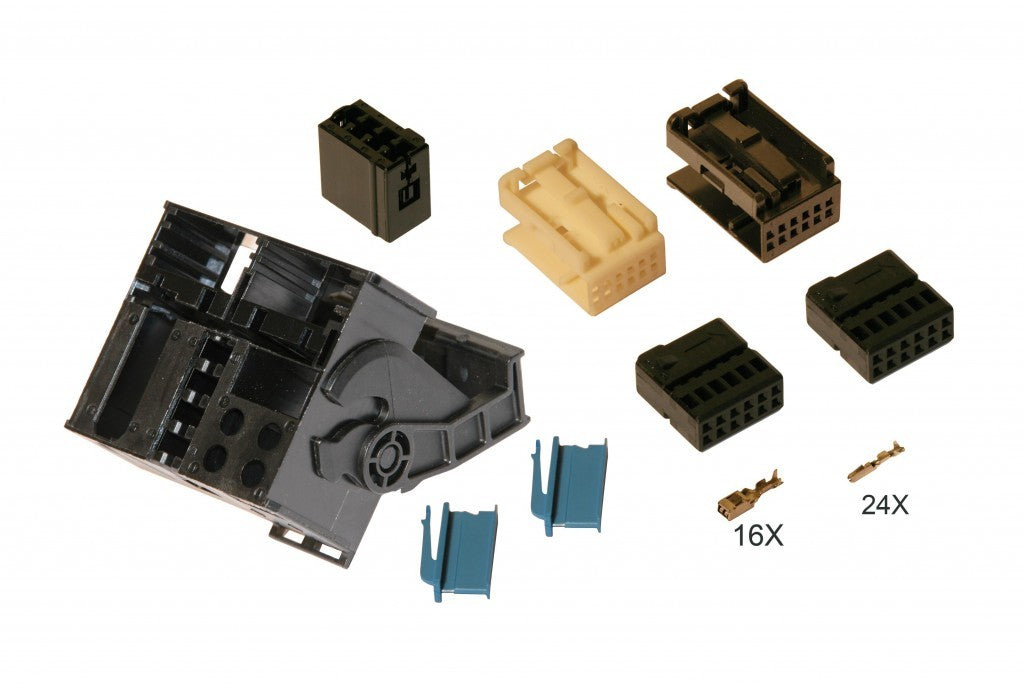

Quadlock - Installation Kit

Adapter to allow transfer of NF signals, such as telephone or navi-voice, in radios with MOST / Quadlock plug

Specific QuadLock installation kit to connect vehicle cables as well as for performing repairsThere are 3 different options available:Connector / plugOnly the pure connector is supplied hereConnector / plug + contact materialHere we deliver the connector and the required contact materialFor automotive cables FLRY 0.50mm² - 1.00mm²Fully assembled connector / plugCable length: 600mm0.5mm² / 1.0mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112Assembled single cable similar to 000 979 020 E (0.5mm²) 000 979 132 E (1.0mm²)Produced on fully automatic machines with crimp force monitoring (process monitoring)Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)Selectable options:Connector only (5-pin plug housing 6N0 973 805)Connector + contact material (5-pin plug housing 6N0 973 805 + 5x contacts + 5x seal and 3x blind seal)Assembled repair kit (5-pin plug housing 6N0 973 805 with fully crimped connecting cables) 0.5mm²Assembled repair kit (5-pin plug housing 6N0 973 805 with fully crimped connecting cables) 1.0mm²Scope of delivery: QuadLock main connectorQuadLock element 8-poleElement for CD-Changer + housingElement for Telephone + housing2 x Locking device16 x Terminals24 x MQS Terminals
