Repair kit connector 3 pin 1T0 973 203, 4F0 973 703 A MLK coupling for VW Audi Seat Skoda

3-pin MLK coupling for spare parts and repairs

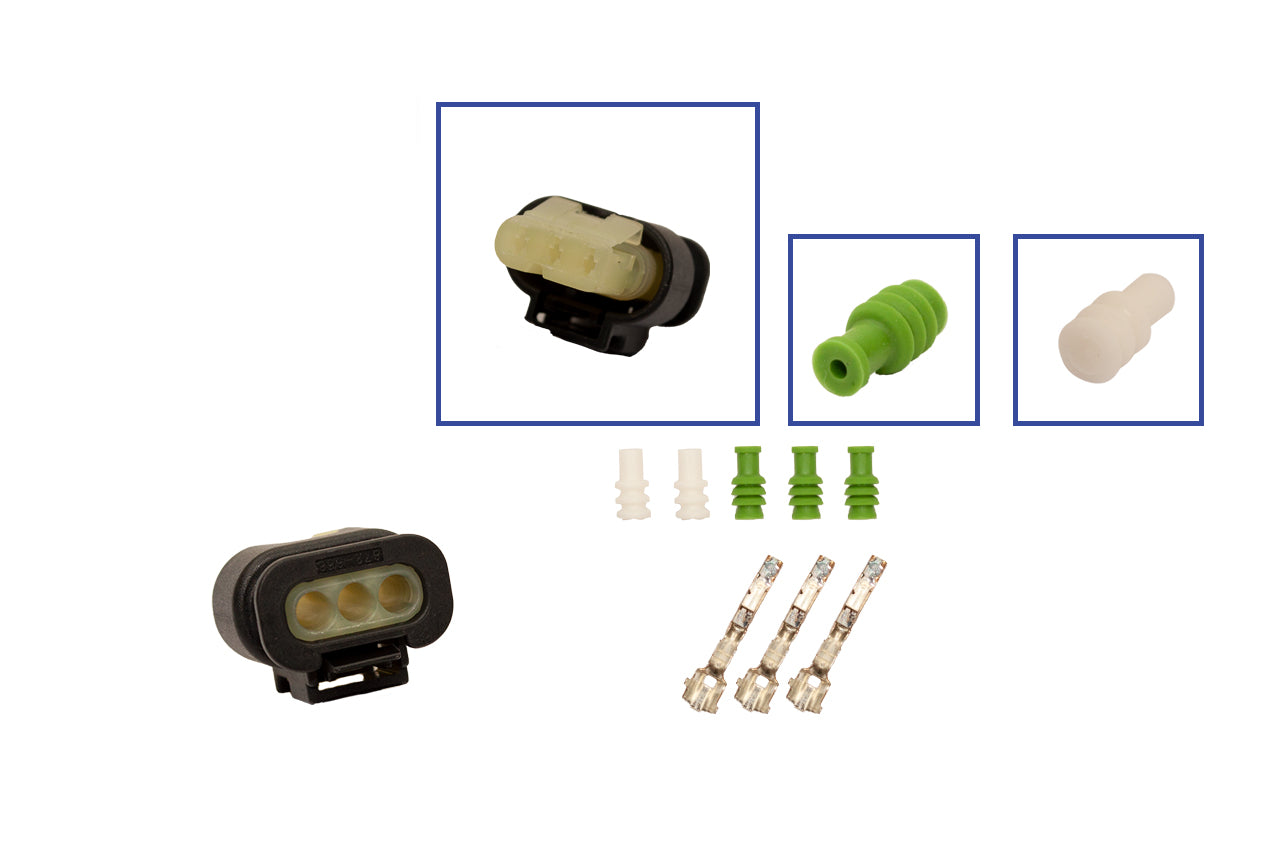

3-pin MLK coupling for spare parts and repairsConnector OE number: 1T0 973 203, 4F0 973 703 AThere are 3 different options available:Connector / plugOnly the pure connector is supplied hereConnector / plug + contact materialHere we deliver the connector and the required contact materialFor automotive cables FLRY 0.35mm² - 0.5mm²Fully assembled connector / plugCable length: 600mm0.5mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112Assembled single cable similar to  000 979 034 E (0.5mm²)Produced on fully automatic machines with crimp force monitoring (process monitoring)Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)Selectable options:Connector only (3-pin MLK coupling 1T0 973 203, 4F0 973 703 A)Connector + contact material (3-pin MLK coupling 1T0 973 203, 4F0 973 703 A + 3x contacts + 3x seal and 2x blind seal)Assembled repair kit (3-pin MLK coupling 1T0 973 203, 4F0 973 703 A with fully crimped connecting cables)Note:To ensure proper function and tightness, make sure that the cable diameter and cross-section are correctThe original spare part number / OE number is for comparison purposes only
