Repair kit connector 8 pin 1J0 972 724 / 191 972 724 plug housing for VW Audi Seat Skoda

8-pin plug housing for spare parts and repairs

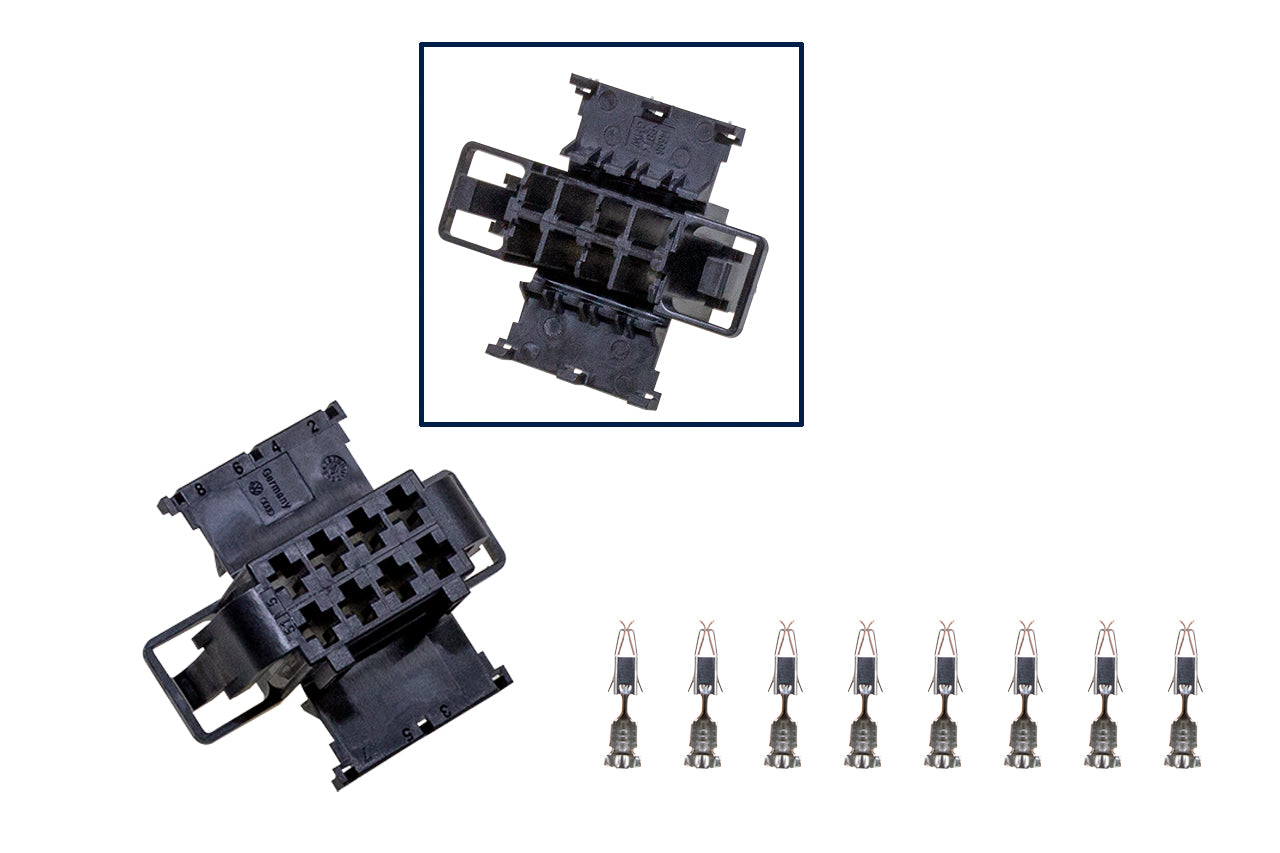

8-pin plug housing for spare parts and repairsConnector for the following OE number: 1J0 972 724 / 191 972 724There are 3 different options available:Connector / plugOnly the pure connector is supplied hereConnector / plug + contact materialHere we deliver the connector and the required contact materialFor automotive cables FLRY 0.5mm² - 1.0mm² / 1.5mm² - 2.5mm²Fully assembled connector / plugCable length: 600mm0.5mm² / 1.0mm² / 2.5mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112Assembled single cable similar to 000 979 021 E (0.5mm²) 000 979 133 E (1.0mm²) 000 979 225 E (2.5mm²)Produced on fully automatic machines with crimp force monitoring (process monitoring)Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)Selectable options:Connector only (8-pin plug housing 1J0 972 724 / 191 972 724)Connector + contact material (8-pin plug housing 1J0 972 724 / 191 972 724 + 8x contacts) 0.5mm² - 1.0mm²Connector + contact material (8-pin plug housing 1J0 972 724 / 191 972 724 + 8x contacts) 1.5mm² - 2.5mm²Assembled repair kit (8-pin plug housing 1J0 972 724 / 191 972 724 with fully crimped connecting cables) 0.5mm²Assembled repair kit (8-pin plug housing 1J0 972 724 / 191 972 724with fully crimped connecting cables) 1.0mm²Assembled repair kit (8-pin plug housing 1J0 972 724 / 191 972 724 with fully crimped connecting cables) 2.5mm²Note:To ensure proper function and tightness, make sure that the cable diameter and cross-section are correctThe original spare part number / OE number is for comparison purposes only
