Repair kit connector 6 pin for MINI ISO connector housing

MINI ISO Green plug housing, 6 pin, suitable for self-installation, 10 x MINI ISO Green Plug Housing

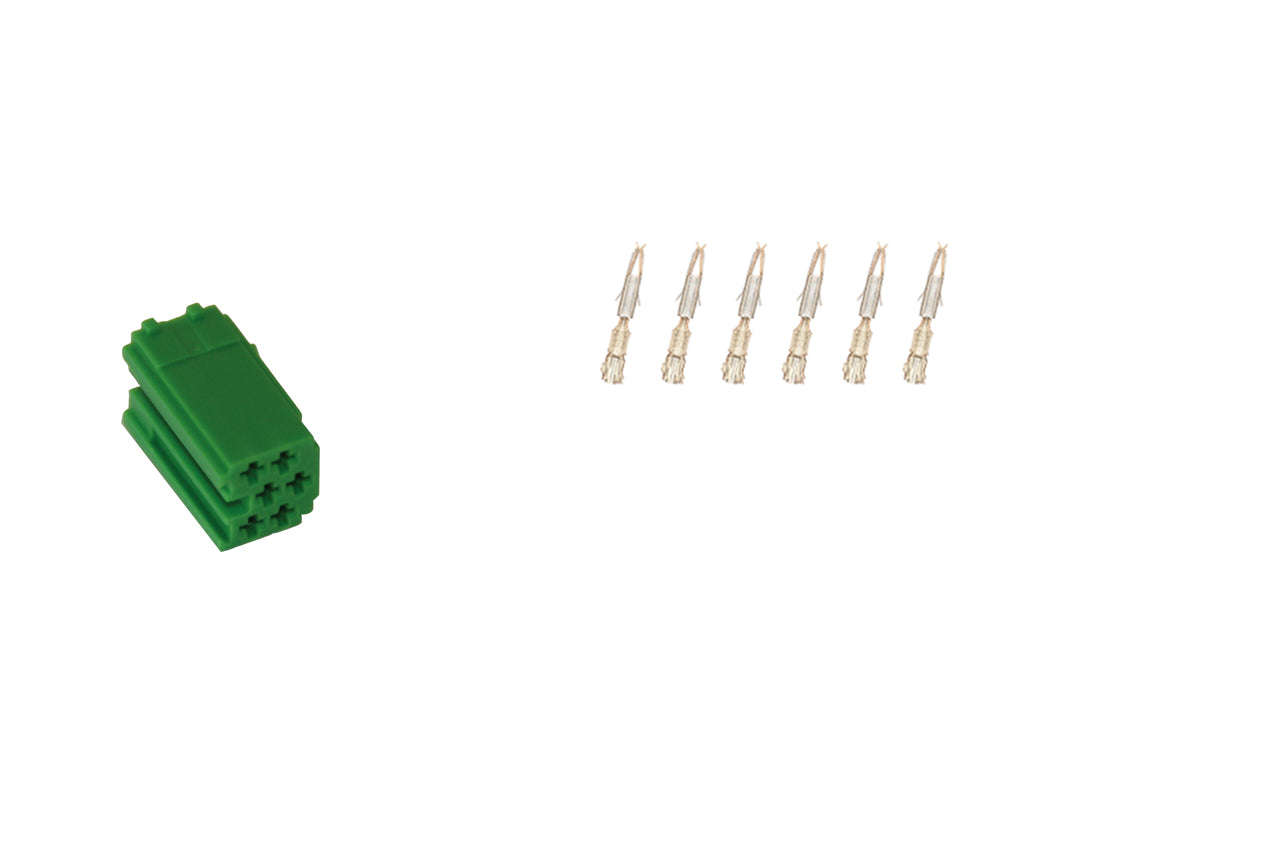

6 pin MINI ISO Green plug housing for spare parts and repairsThere are 3 different options available:Connector / plugOnly the pure connector is supplied hereConnector / plug + contact materialHere we deliver the connector and the required contact materialFor automotive cables FLRY 0.5mm² - 1.0mm²Fully assembled connector / plugCable length: 600mm0.5mm² / 1.0mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112Assembled single cable similar to 000 979 019 E (0.5mm²) 000 979 131 E (1.0mm²)Produced on fully automatic machines with crimp force monitoring (process monitoring)Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)Selectable options:Connector only (MINI ISO connector housing green)Connector + contact material (MINI ISO connector housing green + 8x contacts)Assembled repair kit (MINI ISO connector housing green with fully crimped connecting cables) 0.5mm²Assembled repair kit (MINI ISO connector housing green with fully crimped connecting cables) 1.0mm²Notes:Suitable contacts: Part No. 35484
