QuadLock Insert 24 pin

QuadLock employment suitable for Quadlock push-pull plug, 24-pins, suitable with self-installation

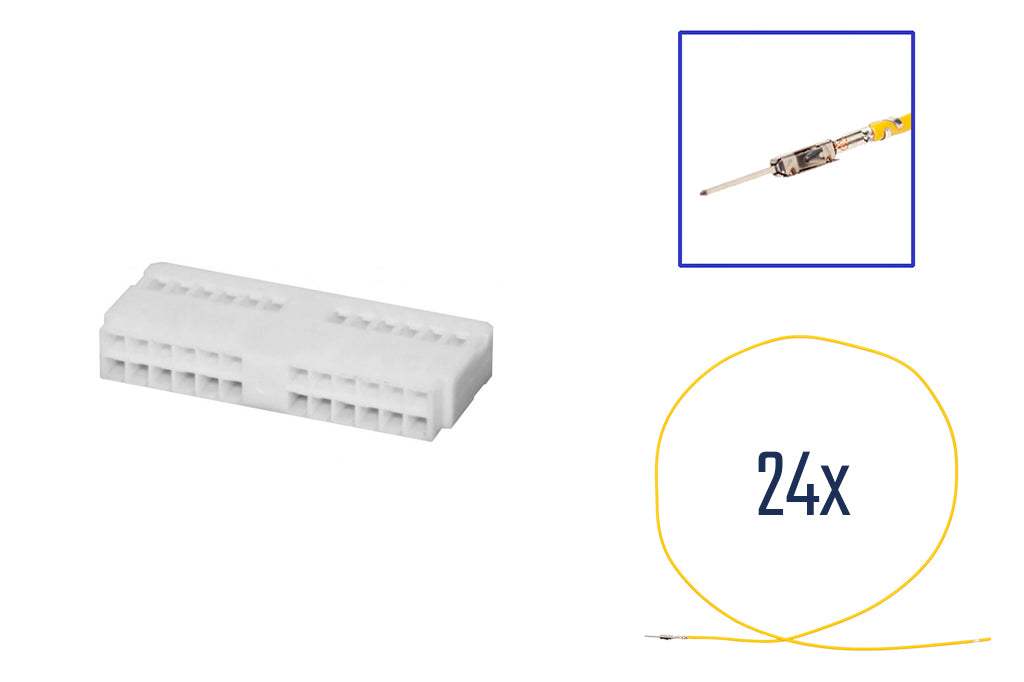

QuadLock employment suitable for Quadlock push-pull plug24-pinsThere are 3 different options available:Connector / plugOnly the pure connector is supplied hereConnector / plug + contact materialHere we deliver the connector and the required contact materialFor automotive cables FLRY 0.35mm² - 0.75mm²Fully assembled connector / plugCable length: 600mm0.5mm² / 0.75mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112Assembled single cable similar to 000 979 012 E (0.5mm²) 000 979 165 E (0.75mm²)Produced on fully automatic machines with crimp force monitoring (process monitoring)Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)Selectable options:Connector only (QuadLock Insert 24 pin)Connector + contact material (QuadLock Insert 24 pin + 24x contacts)Assembled repair kit (QuadLock Insert 24 pin with fully crimped connecting cables) 0.5mm²Assembled repair kit (QuadLock Insert 24 pin with fully crimped connecting cables) 0.75mm²Notes: Suitable QuadLock push-pull plug: Part No. of 35510Suitable contacts Part - No.38290
