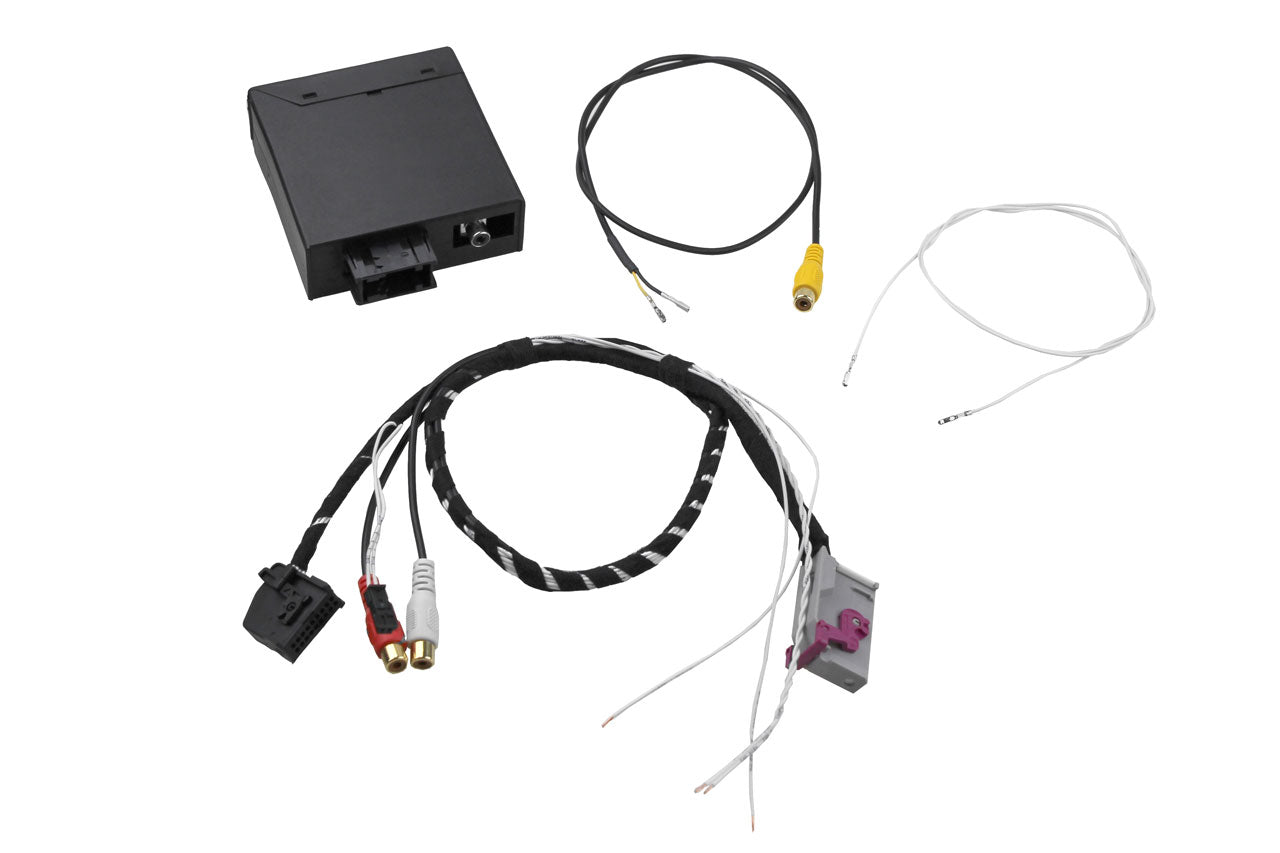

Rear View Camera universal interface for Audi, VW, Skoda, Seat

Rear view camera interface for retrofitting a universal reversing camera (NTSC) for Audi, VW, Skoda, Seat

Rear view camera interface to retrofit a universal rear view camera (NTSC) for Audi/VWThe area behind the vehicle will be displayed on the screen of the original head unitNo installation of an addititional screen is necessary!Suitable for original head units as follows: Volkswagen MFD 2 / RNS 2Volkswagen RNS 510Volkswagen RNS 315Skoda Columbus (identical RNS 510)Skoda Amundsen+ (identical RNS 315)Audi RNS E (A3 8P, A3 8PA, A3 Cabriolet, A4 8E,TT 8J)Audi RNS E (R8)Skoda Nexus 16:9Seat Navigation 16:9Lamborghini GallardoNOTE: Regarding Audi vehicles not suitable for RNS-E head unit from 2010 model year (part number ... ... 193)NOTE VW T5 GP (from 2010):  For vehicles with OPS on the BACK (optical parking system on the back) the OPS function get lost - no limitations for vehicles with OPS on the BACK and FRONTNo display of guiding lines and fields on the screen of the head unitEasy installation due to automatic head unit detectionAuto switch to rear view cam by choosing the rear gear*Specifications - Interface:Power supply: 12 Volt (10-15 Volt)Power input: 170-190 mAStandby current: 4-6 mADimensions in mm: 99 x 96.5 x 23Certification: E13 10R-02-9578Selectable options:VW MFD 2 / RNS 2VW RNS 510 / RNS 315Audi RNS EScope of delivery:RVC InterfaceWiringVideo loomAuto switch loom (only for Audi A3 8P, A4 8E, TT 8J RNS-E / VW MFD 2, RNS 2)Notes: Only suitable for an NTSC camera* In case of headunit RNS-E the auto switch is limited to Audi A3 8P, A38PA, A3 Cabriolet, A4 8E, TT 8JTo retrofit an original Audi or VW camera you will need additional wiring: Part No. 36136Not suitable for vehicles with factory fitted TV
